Copper cable

CAT 6 (CAT6 UTP) CAT5E (CAT5E UTP) CAT5E (CAT5E SFTP) CAT 6 (CAT6 SFTP) CAT 6 (CAT6 UTP Armored) CAT 6 (Cat 6 UTP - LSZH) CAT 6A CAT 5E (UTP Keystone Jack) CAT 5E (UTP Patch Panel) CAT 5E (UTP Patch Cord) CAT 5E (STP Patch Panel) CAT 5E (LED Patch Panel) CAT 5E (Cat5e UTP Connector) CAT 6 (UTP Patch Cord) CAT 6 (STP Patch Cord) CAT 6 (UTP Keystone Jack) CAT 6 (STP Keystone Jack) CAT 6 (STP Patch Panel) CAT 6 (UTP Patch Panel) CAT 6A (UTP Patch Cord) CAT 6A (UTP Keystone Jack) PATCH PANEL (UNLOADED ) PATCH PANEL (ANGULAR UNLOADED) FACE PLATE

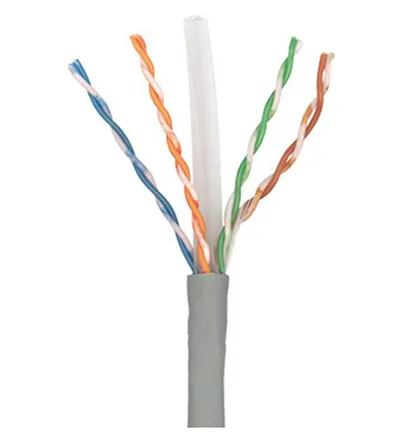

CAT6 UTP 23AWG SOLID:305M


  • CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard.
  • Operates at a bandwidth up to 250 Mhz.
  • This cable well exceeds the requirements
    of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E
Features
  • Comply with Cat.6 specifications
  • 4-pair unshielded twisted pair (UTP) cable
  • Pairs are braided in aluminum foil with drain wire
  • 23 AWG solid copper conductor for superior conductivity
  • PE insulation
  • PE central cross
  • FR PVC/LSZH Jacket
  • Verified compliant with EIA/TIA standards by ETL
  • CUL-listed
  • Packaged in an easy-to-pull box for easier installation
Specifications

Category : 6 UTP Solid cable

Conductor : 23 AWG (Solid)

Conductor Meta : Conductor Meta : Bare Copper

Insulation Materia : HD-PE

OD : 6mm ±0.2

Jacket hardness : 45P (90A ± 2A, Shore)

Heat-resistant : 75 degree C minimum (T)

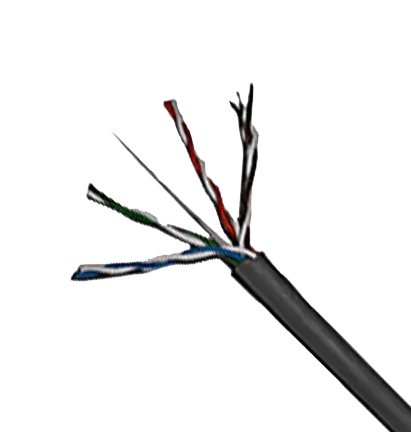

CAT5E UTP 24AWG SOLID:305M


  • CAT5e UTP Cable supports Gigabit Ethernet (1000 Base-T) standard.
  • Operates at a bandwidth up to 100 Mhz.
  • This cable well exceeds the requirements
    of TIA/EIA-568.C.2 and ISO/IEC 11801
Features
  • Comply with Cat5e specifications
  • 4-pair shielded twisted pair cable
  • 24 AWG solid copper conductor
  • Pairs are wrapped in polyester tape and aluminum foil with drain wire
  • PE insulation
  • FR PVC Jacket
  • Verified compliant with EIA/TIA standards by ETL
  • CUL-listed
  • Packaged in an easy-to-pull box for easier installation
Specifications

Category : 5e SFTP Solid cable

Conductor : 24 AWG Multi-cores (Solid)

Conductor Meta : Bare Copper

Insulation Materia : HD-PE

Outside-Tape Metal: MYLAR

Overlap Rate : 25%

Drain Wire : 24 AWG(0.500 ±0.007mm)

Jacket hardness : 45P (90A ± 2A, Shore)

Material : PVC UL94V-0

Heat-resistant : 75 degree C minimum (Temperature limited)

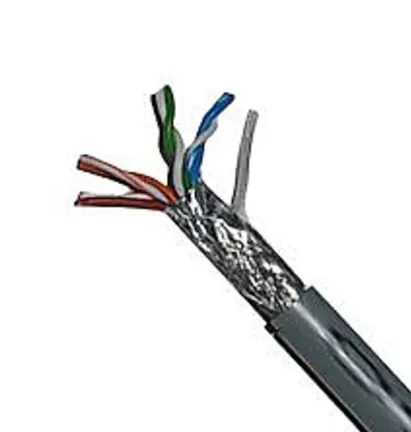

CAT5E SFTP 24AWG SOLID:305M


  • CAT5e UTP Cable supports Gigabit Ethernet (1000 Base-T) standard.
  • Operates at a bandwidth up to 100 Mhz.
  • This cable well exceeds the requirements of
    TIA/EIA-568.C.2 and ISO/IEC 11801
Features
  • Comply with Cat5e specifications
  • 4-pair shielded twisted pair cable
  • 24 AWG solid copper conductor
  • Pairs are wrapped in polyester tape and aluminum foil with drain wire
  • PE insulation
  • FR PVC Jacket
  • Verified compliant with EIA/TIA standards by ETL
  • CUL-listed
  • Packaged in an easy-to-pull box for easier installation
Specifications

Category : 5e SFTP Solid cable

Conductor : 24 AWG Multi-cores (Solid)

Conductor Meta : Bare Copper

Insulation Materia : HD-PE

Outside-Tape Metal: MYLAR

Overlap Rate : 25%

Drain Wire : 24 AWG(0.500 ±0.007mm)

Jacket hardness : 45P (90A ± 2A, Shore)

Material : PVC UL94V-0

Heat-resistant : 75 degree C minimum (Temperature limited)

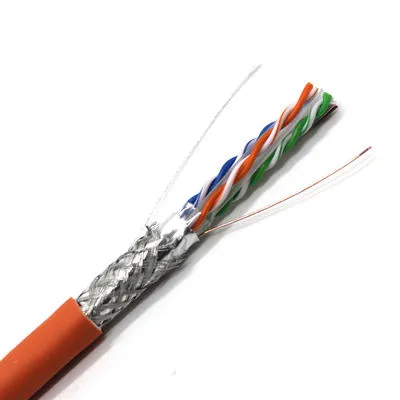

CAT6 SFTP 23AWG SOLID:305M


  • CAT6 SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard
  • Operates at a bandwidth up to 250 Mhz.
  • Tinned Copper Screening gives protection against EMI and avoid signal loss.
  • Better Mechanical Properties of cable.
  • This cable well exceeds the requirements of TIA/EIA-568.C.2
Features
  • Comply with Cat6 specifications
  • 4-pair shielded twisted pair cable
  • 23 AWG solid copper conductor
  • Pairs are wrapped in polyester tape and aluminum foil with drain wire
  • High Density Polyethylene Insulation
  • FR PVC Jacket
  • Verified compliant with EIA/TIA standards
  • Packaged in an easy-to-pull box for easier installation
Specifications

Category : 6 SFTP Solid cable

Conductor : 23 AWG Multi-cores (Solid)

Conductor Meta : Bare Copper

Insulation Materia : HD-PE

Pairs : 2 Insulated conductors twisted together

Shield : Aluminum / Polyester Foil Tinned copper Braiding

Sheath : PVC/LSZH

Cable Diameter : 7.5 mm nominal

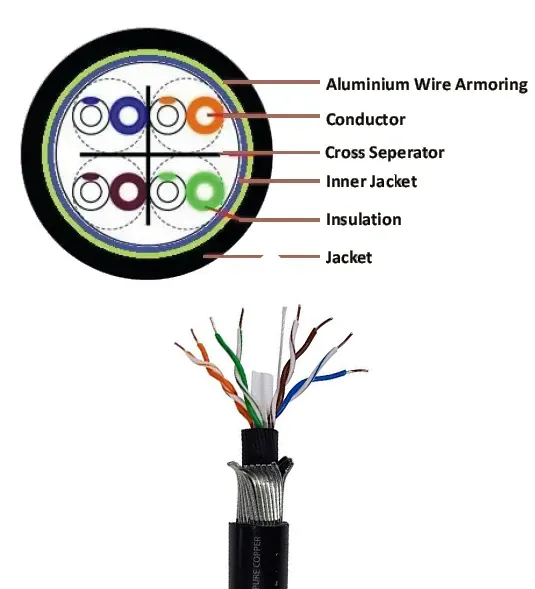

CAT6 UTP 23AWG TWISTED PAIR ARMORED CABLE:305M


  • Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 baseT) standard.
  • Operates at bandwidth of 250 MHz.
  • This cable well exceeds the requirements of TIA/EIA-568-C.2.
Features
  • Suitable for Burial Cables
  • High EMI Interference surroundings
  • Confirming to EIA/TIA 568-C.2 and IEC/ISO 11801
  • Operates at bandwidth of 250 MHz
Specifications

Conductor : Solid Bare Electrolytic Grade Copper

Nominal Conductor Diameter : (23 AWG) 0.550 ± 0.015

Insulation : Polyethylene

Rip Cord : Yes

Inner Jacket : PVC

Thickness of Inner Jacket : 0.65 to 0.70 mm

Armouring : G.I. Wire

Size of Wire : 0.90 ± 0.030mm

Sequential Marking : At Every Meter

Temperature Rating : -20 to +60 deg. C

Outer Jacket : PE (Suitable for Burial )

Thickness of Outer Jacket : 0.85 mm (Nom.)

Colour of Jacket : Black

Approximate OD(approx) : 9.70 mm

Filler : HDPE

CAT 6 UTP CABLE - LSZH


  • CAT6 UTP LSZH Cable enhanced the performance for transmission of high speed data, digital and analogue voice and video (RGB).
  • It supports Gigabit Ethernet (1000 Base-T) standard.
  • Operates at a bandwidth up to 250 Mhz.
Features
  • Comply with Cat.6 specifications
  • 4-pair unshielded twisted pair (UTP) cable
  • 23 AWG solid copper conductor for superior conductivity
  • Frequency 250 MHz
  • PE insulation
  • PE central cross
  • FR LSZH Jacket
Specifications

Category : 6 UTP Solid cable LSZH

Conductor : 23 AWG (Solid)

Conductor Meta : Conductor Meta : Bare Copper

Insulation Material : HD-PE

Pairs : 2 Insulated conductors twisted together

Sheath : LSZH

Cable Diameter : 6.1 mm nominal

UTP-23AWGSOLID-305M


  • Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs.
  • Supports Gigabit Ethernet (10GbaseT) standard.
  • Operates at bandwidth of 500MHz.
Features
  • Comply with Cat.6A specifications
  • 4-pair unshielded twisted pair (UTP) cable
  • 23 AWG solid copper conductor wit a frequency of 500 MHz
  • HD-PE insulation, PE central cross
  • FR PVC/LSZH Jacket
  • Verified compliant with EIA/TIA standards by ETL
  • Packaged in an easy-to-pull box for easier installation
Specifications

Category : 6A UTP Solid cable

Conductor : 23 AWG (Solid)

Conductor Meta : Bare Copper

Insulation Material : High Density Polyethylene

Sheath : PVC/LSZH

Cable Diameter : 8.0mm Nominal

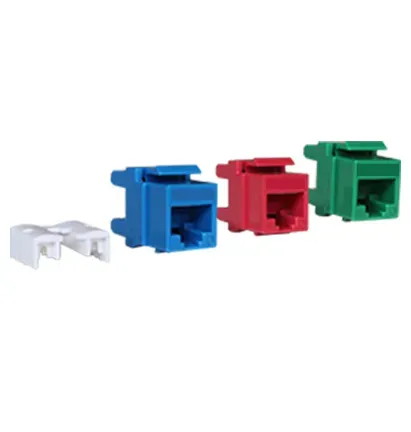

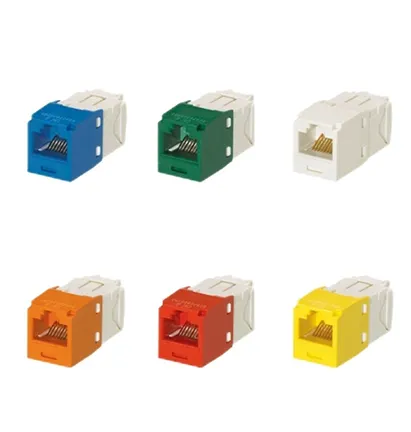

CAT 5E KEYSTONE JACK


  • Gateway Netconnect Category 5e keystone jacks are RJ45 8P 8C 50u jacks suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • They are available in universal labels color coded for T568A and T568B wiring schemes
Features
  • RJ45 8P 8C 50u" Jack
  • Terminating 4 pairs, 23-24 AWG cable
  • Universal labels color-coded for T568A and T568B wiring schemes
  • Fitting 1U 24 port High-Density
  • Keystone panel
Specifications
RJ45 Jack :

Housing : ABS+PC, UL 94V-0, with optional color

RJ45 Jack Contact :

Material : Phosphor Bronze with Nickel Plated

RJ45 Jack Contact :

Housing : PC+Glass Fiber, UL 94V-2

Terminal : Phosphor Bronze with Tin plated

Contact Bracket : PC, UL 94V-2 Transparent color

Finish : 50 micro-inch Gold plated on Plug Contact area

IDC CAP : ABS, UL 94V-D

PCB : FR4, UL 94V-D

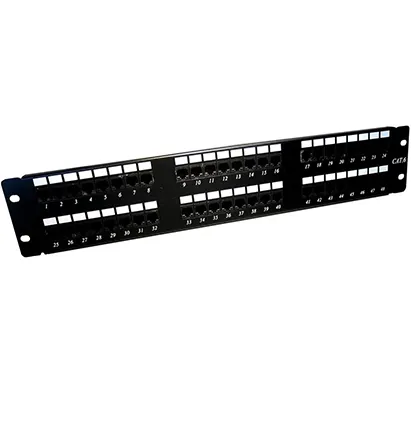

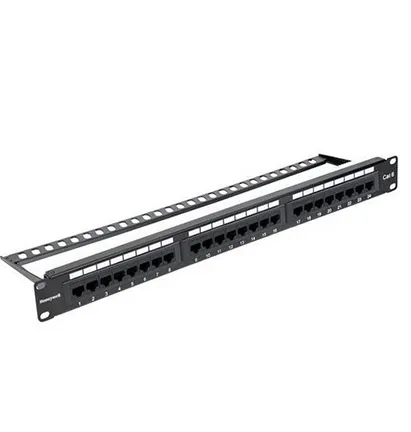

FULLY LOADED PATCH PANEL UTP


  • Gateway Netconnect Category 5e patch panels are six port RJ45 modules applied and suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • Gateway Netconnect Cat5e patch panels have improved Cable Mangement with optional Cable Managementbar termninating 4 pairs UTP cable.
Features
  • Six-port RJ45 modules applied
  • ID stripes for identifying port allocations
  • IDC compatible with 110 & Krone tool
  • Terminating 4 pairs, 22-26 AWG, unshielded cable
  • Improved cable management with an optional cable management bar (Simple type, or "T" slot type)
  • Universal labels color-coded for T568A and T568B wiring schemes
Specifications
Identification:

I.D. Plate : PVC.Transparent color Paper

RJ45 Jack :

Housing : ABS, UL 94V-0 3-2.

RJ45 Jack Contact :

Material : Phosphor Bronze with Nickel plated

IDC :

Housing : PC+Glass Fiber, UL 94V-2

Terminal : Phosphor Bronze with Tin plated

Jack Bracket Set : ABS, UL 94V-0

Contact Bracket : PC, UL 94V-2. Transparent color

Finish : 50 micro-inch Gold plated on Plug contact area

Support Bar : SPCC, 1.5 mm thickness with Black (RAL 9005) color painted

PCB : FR4, UL 94V-0

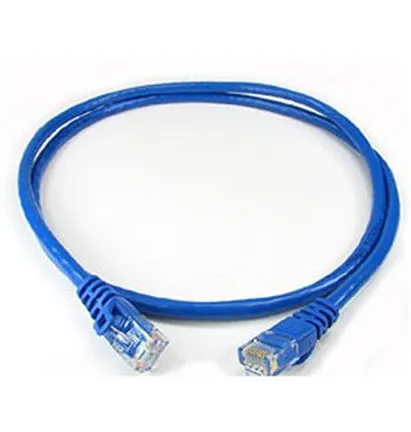

CAT5E UTP 24AWG PATCH CORD


  • Gateway Netconnect Cat5e patch cords are high quality four pair twisted stranded cable terminated with RJ45 modular plugs at both the ends.
  • It is TIA/EIA 568-C.2 standard.
Features
  • Tight conductor twist and cable construction for good performance
  • Tangle free latch prevents snags
  • Boot provides easy access in high density applications and reliability for consistent performance
  • Contacts plated with gold for a strong and consistent connection to support
Specifications
RJ45 Jack:

Housing : ABC + PC, UL 94V-2 Transporent color

RJ45 Jack Contact :

Material : Phosphor Bronze with Nickel Plated

IDC :

Housing : PC+Glass Fiber, UL 94V-2

Terminal : Phosphor Bronze with Tin plated

Contact Bracket : PC, UL 94V-2 Transporent color

Finish : 50 micro-inch Gold plated on Plug Contact area

IDC CAP : ABS, UL 94V-D

PCB : FR4, UL 94V-D

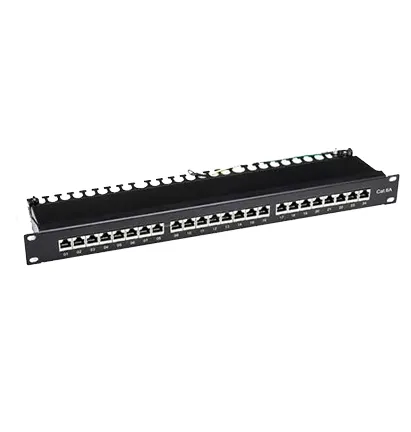

CAT5E STP LOADED PATCH PANEL


  • The shielded Cat5e patch panel is eight ports RJ-45 modules applied and suitable for 22-26 AWG stranded and solid wire, compatible with 110 & Krone punch down tools.
  • This type of panel is highly recommended for use in areas where horizontal cabling is in proximity to electrical facilities that generate high levels of electromagnetic interference.
  • The high performance, high density connectors complied with
Features
  • Hand screw, easy to open cover
  • Eight port RJ45 modules applied
  • Jack shutter to keep dust away
  • Friendly installation, right angle between IDCs and RJ45 jacks
  • ID stripes for identifing port allocations
  • IDC compatible with 110 & Krone tool
Specifications

Panel : SECC, 1.2mm thickness with black color printed

RJ45 Jack Housing : PBT+15%GF, UL 94V-0

RJ45 Jack Contact :

Finish : Min 3 mm 50 micro-inches Gold plated over nickel plated

IDC Housing : PC+5% glass fiber, UL 94V-2

IDC Terminal material & finishing : Phosphor bronze with min 50 micro-inch tin plated Krone tool only, suitable for 22-26 AWG solid and stranded wire

Jack Bracket Set : ABS+PC, UL 94V-0 black color

Dust Cover : PC,UL 94V-0, transparent black color

Name Plate : PVC, transparent color

Ground wire : 18 AWG wire, with Green/Yellow striped color, length 40cm

RJ45 Jack Shield : ronze with nickel plated

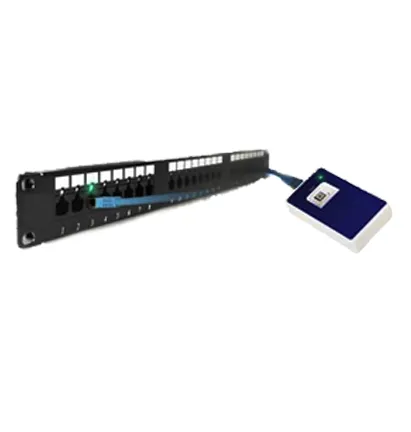

CAT5E LED PATCH PANEL


  • Gateway Netconnect Cat5e/Cat6 Patch Panel with LED Indicators is equipped with an indicator on each port.
  • The LED patch panel is a powerful port identification solution, especially when you are managing large scale networking.
  • This design saves time, energy and money, improving security and secrecy for your network
Features
  • Compliant with ANSI/TIA-568-C.2, ISO/IEC 11801 Ed.2 and EN 50173-1 specification.
  • Writable and erasable marking surfaces for each port on the front panel.
  • Fast-Location lighting cable identification technology for saving cost and time for cable identification
  • LED Status (Green/Red) for identifying on-line or off-line. (Connected to switch or not)
Specifications

High impact plastic housing, Flame retardant UL 94V-0

IDC Operating life : minimum 250 insertion

IDC Contact : 0.8mm thickness phosphor bronze, tin plating over nickel

Jack Contact : phosphor bronze,50μ Inch thickness gold over nickel

Jack Operating life : minimum 750 insertions

PCB : FR-4,1.6mm thickness

Panel : SECC,1.5mm thickness

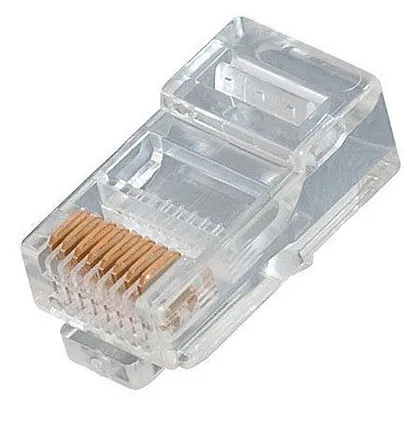

CAT5E UTP RJ45 CONNECTOR


  • Gateway Netconnect RJ45 connector is a modular plug used primarily for network cabling and it is usually used for data transmission.
Features
  • RJ45 modular plug supports 4 twisted pairs
  • 8P8C type of connector
  • Use for 24-26 AWG stranded wires
Specifications

Housing: PC, UL94V-2, transparent color

Contact Terminal: Copper Alloy

Finished: 03MU micro-inch gold plating

Operating temperature:-40⁰C to 80⁰C

Use for 24-26 AWG stranded wires,meet wiring scheme T568A/T568B

RJ45 modular plug supports 4 twisted pairs, 8 positions, 8 connectors of 100pcs/Pack

24AWG: PLUG 30U SNAGLESS


  • Gateway Netconnect Cat 6 patch cords are high quality four pair twisted stranded cable terminated with RJ45 modular plugs at both the ends.
  • It is TIA/EIA-568-C.2 standard.
  • These patch cords are appropriate for high speed data transmission.
Features
  • Tight conductor twist and cable construction for good performance
  • Tangle free latch prevents snags
  • Boot provides easy access in high density applications and reliability for consistent performance
  • Contacts plated with gold for a strong and consistent connection to support
Specifications

Conductor : 24 AWG Multi-strands

Conductor Metal : Bare Copper

Insulation Material : High Densit Polyethylene

Material : PVC UL94V-0

Heat Resistance : 60°C minimum ( Temperature Limited)

Flame Property : The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1(UL) and FT-1 (CSA)

Insertion Cycles : 750 times

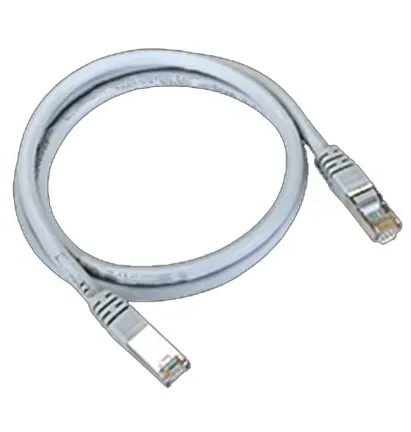

CAT 6 STP PATCH CORD


  • Gateway Netconnect Cat6 patch cords are high quality four pair shielded twisted stranded cable terminated with RJ45 modular plugs at both the ends.
  • It is TIA/EIA 568-C.2 atandard.
  • The shielded cables helps to complete aproper ground connection and allows longer run with less effect of Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).
Features
  • Its appropriate for high speed data transmission
  • High quality four pair shielded twisted stranded cable
  • Less effect of Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI)
  • It is TIA/EIA 568C.2 standard
Specifications

Conductor : 24 AWG Multi-strands

Conductor Metal : Bare Copper

Insulation Material : High Densit Polyethylene

Outside Tape Metal : MYLAR

Drain Wire : 26 AWG

Material : PVC UL94V-0

Color Code : Cool Grey 5C

Heat Resistance : 75°C minimum ( Temperature Limited)

Flame Property : The purpose of the vertical flame test is to screen out flammable wires.

CAT 6 UTP KEYSTONE JACK


  • Gateway Netconnect Category 6 keystone jacks are RJ45 8P 8C 50u jacks suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • They are available in universal labels color coded for T568A and T568B wiring schemes and fit in high density keystone patch panel.
Features
  • RJ45 8P 8C 50u" Jack
  • Terminating 4 pairs, 23-26 AWG cable
  • Universal labels color-coded for T568A and T568B wiring schemes
  • Fitting 1U 24 port High-Density
  • Keystone panel
  • 3P/ETL verified unshielded EIA/TIA connecting hardware
Specifications
Identification

I.D. Plate : PVC. Transparent color Paper

RJ45 Jack

Housing : ABS, UL 94V-0.

RJ45 Jack Contact

Material : Phosphor Bronze with Nickel plated

ID

Housing : PC+Glass Fiber, UL 94V-2

Terminal : Phosphor Bronze with Tin

Jack Bracket Set : ABS, UL 94V-0

Panel : SPCC. 1.5 mm thickness with Black (RAL 9005) color painted

Contact Bracket : PC, UL 94V-2. Transparent color

Finish : 50 micro-inch Gold plated on Plug contact area

Support Bar : SPCC, 1.5 mm thickness with Black (RAL 9005) color painted

PCB : FR4, UL 94V-0

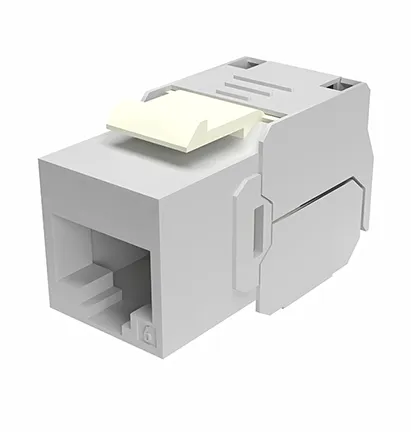

CAT6 STP KEYSTONE JACK


  • Gateway Netconnect Category 6 keystone jacks are RJ45 8P 8C 50u jacks suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tool.
  • They are capable of re-termination.
  • They are availabe in universal labels color coded for T568A and T568B wiring schemes and fit in high density keystone patch panel.
Features
  • RJ45 8P 8C 50u" Jack
  • Terminating 4 pairs, 22-26 AWG cable
  • Universal labels color-coded for T568A and T568B wiring schemes
  • Fitting 1U 24 port High-Density Keystone panel
Specifications
Identification

I.D. Plate : PVC. Transparent color Paper

RJ45 Jack

Housing : ABS, UL 94V-0.

RJ45 Jack Contact

Material : Phosphor Bronze with Nickel plated

ID

RJ45 Jack: Housing-Zinc Alloy

Contact Bracket: PC

RJ45 Jack Contact: Material-Phosphor Bronze Stamp

Pin T + .35mm

Finish : 50 micro-inch gold plated on plug contat area

IDC: Phosphor Bronze

Pin T = 0.50mm with tin plating

IDC Cap: PC

Insertion Cycles: 750 times

IDC Life: 200 times Min.

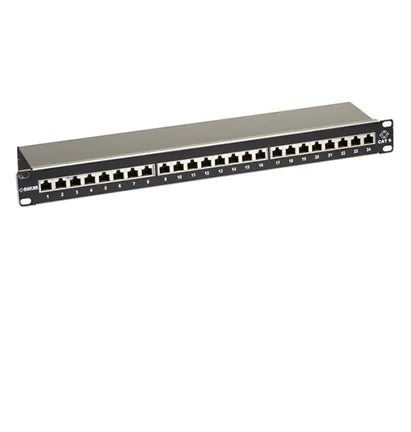

CAT6 STP PATCH PANEL


  • Gateway Netconnect Cat6 patch panel is eight ports RJ45 modules applied and suitable for 22-26 AWG stranded and solid wire, compatible with 110 & Krone punch down tools.
  • Gateway Netconnect STP patch panels terminates 4 pairs STP cable and are rack mounted.
Features
  • Hand screw, easy to open cover
  • Eight port RJ45 modules applied
  • Jack shutter to keep dust away
  • RJ45 8P 8C 50u" Jack
  • Terminating 4 pairs, 22-26 AWG cable
  • Universal labels color-coded for T568A and T568B wiring schemes
  • Fitting 1U 24 port High-Density Keystone panel
Specifications

ID Bracket : ABS + PC, UL 94V-0

Panel : SECC, 1.2mm thickness with optional color painted

RJ45 Jack

RJ45 Jack Contact: Material-Phosphor Bronze Stamp

RJ45 Jack Contact

Material : Phosphor bronze with nickel plated

Finish : 50 micro-inches Gold plated on plug contact area

IDC

Housing : PC+ glass fiber, UL 94V-2

Identification : ID plate, PVC, transparent color with paper

Contact Brackets : PBT + glass fiber, UL-94V-0

RJ45 Jack Shield : Bronze with nickel plated

Dust Cover : PC, UL94V-2

CAT 6 UTP LOADED PATCH PANEL


  • Gateway Netconnect Category 6 patch panels are six port RJ45 modules applied and suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • Gateway Netconnect patch panels have improved Cable Management with optional Cable Management bar terminating 4 pairs UTP cable.
Features
  • Six-port RJ45 modules applied
  • ID stripes for identifying port allocations
  • IDC compatible with 110 & Krone tool
  • Terminating 4 pairs, 22-26 AWG, unshielded cable
  • Improved cable management with an optional cable management bar (Simple type, or "T" slot type)
  • Universal labels color-coded for T568A and T568B wiring schemes
Specifications

ID Plate : PVC. Transparent colour paper

Panel : SPCC, 1.5mm thickness with black (RAL 9005)color painted

RJ45 Jack

Housing : ABS, UL 94V-0

RJ45 Jack Contact

Material : Phosphor bronze with nickel plated

IDC

Housing : PC+ glass fiber, UL 94V-2

Jack bracket set: ABS, UL 94V-2

Support Bar SPCC, 1.5mm thickness with Black (RAL 9005) colour painted

PCB - FR4, UL 94V-0

Contact Brackets : PC, UL-94V-2. Transparent colour

Finish : 50 micro-inch Gold plated on plug contact area

Terminal : phosphor bronze with tin p

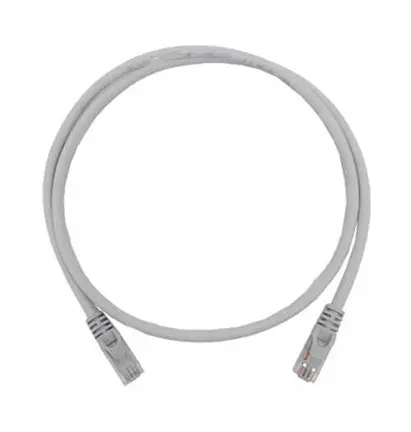

CAT6A UTP 24AWG PATCH CORD


  • Gateway Netconnect Cat6A patch cords are high quality four pair twisted stranded cable terminated with RJ45 modular plugs at both the ends.
  • It is TIA/EIA 568C.2 standard.
  • These patch cords are appropriate for high speed data transmission.
Features
  • Tight conductor twist and cable construction for good performance.
  • Tangle free latch prevents snags.
  • Boot provides easy access in high density applications and reliability for consistent performance.
  • Contacts plated with gold for a strong and consistent connection to support.
Specifications

Conductor : 24 AWG Multi-cores

Conductor Metal : Bare Copper

Insulation Material : HD-PE

Material : PVC UL94V-0

Heat Resistance : 75˚C minimum (Temperature limited)

Flame Property : The purpose of the vertical flame test is to screen out flammable wires.
It follows the VW-1 (UL) and FT-1 (CSA) standards

CAT 6A UTP KEYSTONE JACK


  • Gateway Netconnect Category 6A keystone jacks are RJ45 8P 8C 50u jacks suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • They are available in universal labels color coded for T568A and T568B wiring schemes and fit in high density keystone patch panel.
Features
  • RJ45 8P 8C 50u Jack
  • Terminating 4 pairs, suitable for 23-26 AWG stranded and solid wire compatible with both 110 & Krone punch down tools
  • Universal labels color coded for T568A and T568B wiring schemes
  • Fitting ig density keystone patch panel
  • Keystone panel
Specifications
RJ45 Jack

Contact Bracket : PC, UL 94V-2 Transparent color

RJ45 Jack Contact

Material : Phosphor Bronze with Nickel Plated

IDC

Housing : PC+Glass Fiber, grey color UL 94V-2

Terminal : Phosphor Bronze with Tin plated

IDC CAP : PC + glass fiber, UL 94-V2, white color

Contact Bracket : PC, UL 94V-2 Transparent color

Finish : 50 micro-inch Gold plated on Plug

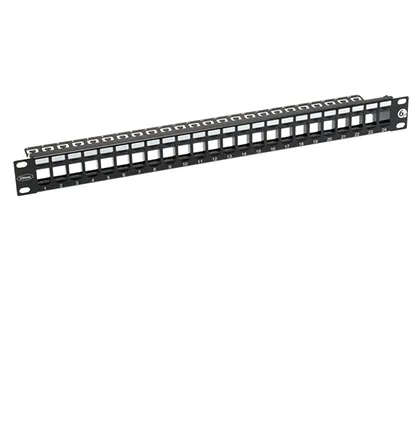

UNLOADED PATCH PANEL


  • Gateway Netconnect Unloaded Patch Panel 24/ 48 port RJ45 modules applied and suitable for Cat 5e, Cat 6 and Cat 6A.
  • Gateway Netconnect patch panel have improved cable management with optional cable management bar terminating 4 pairs UTP cable.
Features
  • With cable management bar for improved management
  • Staggered 24 port panel in 1U
  • Staggered 48 port panel in 2U
  • Mounts in standard 19 inch racks
  • Feasible solution for lower interference and eliminate alien crosstalk
Specifications

Panel : PC + glass fiber, UL 94V-0, black color

Support Bar : PC + glass fiber, UL 94V-0, black color

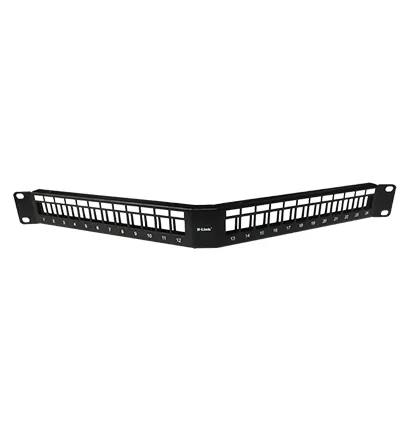

24 Ports - Angular Patch Panel - Unloaded


  • Angled UTP Blank Panel 1U 24 ports, 19inch available for Cat5e, Cat6, Cat6A UTP Keystone Jack
  • Angled design easy to arrange patch cord from both side of the rack Front cable manager not required
Features
Specifications

All steel metal with high quality plastic powder cladding surface

Blank port, 24 ports for keystone jacks with back cable management bar

Angled design for high density installation

Face Plate


Gateway Netconnect offers a range of high quality, stylish designed Faceplates for professional installations, fully compliant for copper cabling systems. The Faceplates are inbuilt with shutters which are compatible with any standard colored keystones jacks. The Faceplates are available in one, two and four port variants.

  • Stylish design in order to fit the wall perfectly
  • Faceplate with Shutter.
  • Single port, dual ports, 3 ports and 4 ports all available.
  • Label Holder Included.
Specifications

UK style with shutter against dust and labeling plate

ID Plate : PC - transparent color

Face plate : ABS - with white color

Dust Cover : ABS - with white color

Screw : M3.5XL25.0mm

Fiber Cables Fiber LIU Fiber Connectors Fiber Patch cords Fiber Pigtails FTTH

Armoured OFC UnArmoured OFC Tight Buffered OFC OM4 OFC

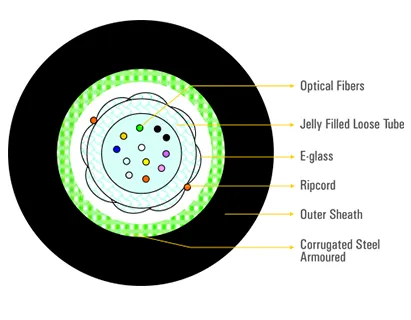

ARMOURED OPTIC FIBER CABLE


  • Armouring is a technique to protect the optic fiber cables.
  • Gateway Netconnect Armoured Optic Fiber Cables are protected by Glass-yarn in between corrugated Steel tape & loose -tube.
  • This cable offers excellent protection from moisture.
  • Comply to latest industry standards i.e IEC, ITU, ISO.

Features
  • Suitable for Indoor / Outdoor (duct) Local Area Network System
  • Excellent Water Proof Layer & Good Moisture Resistance
  • Excellent Crush Resistance performance , Light weight , Compact structure
Specifications

ISO : 11801

IEC : 60793-1 / 60794 -1-2

ITU-T : REC G.652D

Telecordia : GR-20 Core

Mechanical & environmental Characteristics

Operating Temperature : -20 deg C to +60 deg C

Storage Temperature : -40 deg C to +60 deg C

Jacket Material : LSZH / HDPE

Outer Diameter : 9mm to 9.5 mm +/- 0.3 mm

Jacket Thickness : 1.8 mm +/- 0.2 mm

UNARMOURED OPTIC FIBER CABLES


  • Gateway Netconnect UnArmoured Optic Fiber Cables are protected by Glass-yarn in the loose tube except the Steel tape protection.
  • This cable offers excellent water proofing and light weight , compact , small size for easy handling.
  • This cable offers excellent protection from moisture.
  • Comply to latest industry standards i.e IEC, ITU, ISO.

Features
  • Suitable for Indoor / Outdoor (duct) Local Area Network System
  • Excellent Water Proof Layer & Good Moisture Resistance
  • Excellent Crush Resistance performance , Light weight , Compact structure
Specifications

ISO : 11801

IEC : 60793-1 / 60794 -1-2

ITU-T : REC G.652D

Telecordia : GR-20 Core

Mechanical & environmental Characteristics

Operating Temperature : -20 deg C to +60 deg C

Storage Temperature : -40 deg C to +60 deg C

Jacket Material : LSZH / HDPE

Short term : 2000 N

Long Term : 1000N

Pulling Tension

Outer Diameter : 9mm to 9.5 mm +/- 0.3 mm

Jacket Thickness : 1.8 mm +/- 0.2 mm

Bend Radius

Short term : 20D

Crush Load : 3000 N/100mm

Long Term : 10D

TIGHT BUFFERED OPTIC FIBER CABLES


  • In Tight Buffered OFC the buffer is the first layer of protection surrounding the optical fiber, the bare fiber is put into this buffer tube.
  • A tight buffer fiber optic cable means the optical fiber’s coating diameter is same as the buffer tube’s inner diameter.
  • Gateway Netconnect Tight Buffered Cable cables improves reliability and terminations are faster.

Features
  • Suitable for Indoor / Outdoor (duct) Local Area Network System
  • Excellent Water Proof Layer & Good Moisture Resistance
  • Excellent Crush Resistance performance , Light weight , Compact structure
Specifications

ISO : 11801

IEC : 60793-1 / 60794 -1-2

ITU-T : REC G.652D

Telecordia : GR-20 Core

Mechanical & environmental Characteristics

Operating Temperature : -20 deg C to +60 deg C

Storage Temperature : -40 deg C to +60 deg C

Jacket Material : LSZH / HDPE

Pulling Tension

Short term : 2000 N

Long Term : 1000N

Bend Radius

Short term : 20D

Outer Diameter : 9mm to 9.5 mm +/- 0.3 mm

Jacket Thickness : 1.8 mm +/- 0.2 mm

Crush Load : 3000 N/100mm

Long Term : 10D

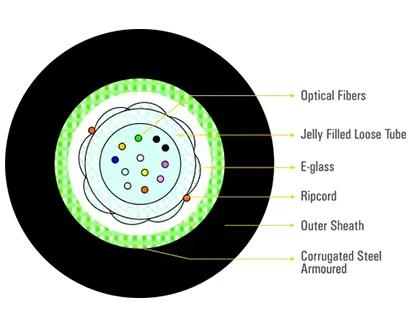

OM4 OPTIC FIBER CABLE


  • Gateway Netconnect OM4 Fiber is laser-optimized, high bandwidth 50um multimode fiber protected by Glass-yarn in between corrugated Steel tape & loose -tube.
  • This cable offers excellent protection from moisture ,water and physical environment.
  • Comply to latest industry standards i.e IEC,ITU,ISO.

Features
  • Suitable for Indoor / Outdoor (duct) Local Area Network System
  • Excellent Water Proof Layer & Good Moisture Resistance
  • Excellent Crush Resistance performance , Light weight , Compact structure
Specifications

ISO : 11801

IEC : 60793-1 / 60794 -1-2

ITU-T : REC G.652D

Telecordia : GR-20 Core

Mechanical & environmental Characteristics

Operating Temperature : -20 deg C to +60 deg C

Storage Temperature : -40 deg C to +60 deg C

Jacket Material : LSZH / HDPE

Pulling Tension

Short term : 2000 N

Long Term : 1000N

Bend Radius

Short term : 20D

Outer Diameter : 9mm to 9.5 mm +/- 0.3 mm

Jacket Thickness : 1.8 mm +/- 0.2 mm

Crush Load : 3000 N/100mm

Long Term : 10D

Fixed LIU Optic Fiber Adapters Sliding LIU Wall Mount LIU

FIXED LIGHT INTERFACE UNIT - RACK MOUNT


  • Gateway Netconnect 19-inch Fixed Optical Fiber Interconnection Units are the smaller basic patch panel & cabinets used in interconnecting, cross-connecting, or splicing applications in LANs at a premise location.
  • The LIU (optical fiber interconnecting unit) is modular and suitable for optical cable installation, bare fibers splicing & protection, pigtails storage & management.
  • The number of fibers determines which LIU is appropriate for the application.
  • The Gateway Netconnect 1U Series Combination Shelves help you save time & money to manage your cable resources efficiently.
  • By using these shelves to terminate and splice fibers, you can rearrange cabling quickly and keep track of your fiber resources.
  • Efficient fiber management also helps save on maintenance and replacement costs.

Features
  • Suitable for interconnect in cables distribution or between cables and optical equipments
  • Space saving with its compact & small design of enclosure
  • Front door design is easy for operation & fibers expansion
  • Can manage both splices and terminations
  • Can include adapter panels for maximum 24 ports LC/SC and 12 ports ST/FC terminations
  • Rubber fiber slotted bracket built-in, metal splice shelf to protect the fibers
  • Snap-in locker design, easy to change adapter panels for flexible configuration & easy installation
  • Top & bottom cable entry is easy with rubber plug
Specifications
Parts Material Dimension Remarks
Metal Draw Steel, 1.5mm Thickness 410 x 309 x 38.80mm (DxWxH) 1U, Black or Beige
Metal Outer Shelf Steel, 1.5mm Thickness 430 x 250 x 43.65mm (DxWxH) 1U, Black or Beige
Metal Mounting Ear Steel, 2.0mm Thickness 75 x 26.3 x 43.65mm (DxWxH) 2 Pieces, Black or Beige
Splice Tray Plastic 224 x 107 x 12.2mm (DxWxH) Containers 12, 24 fibers
Adapter Panel Steel, 1.5mm Thickness 109.4 x 35.4mm (WxH) 3 Panels, Black or Beige
Cable Plug Rubber 28mm Diameter For 2 Cable Entries

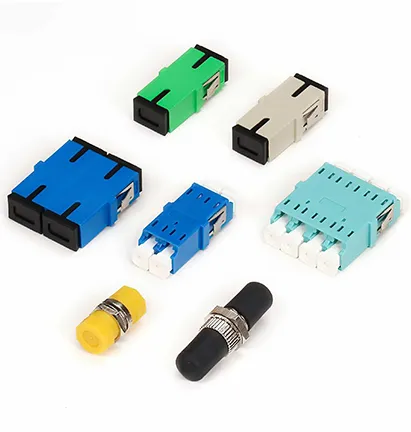

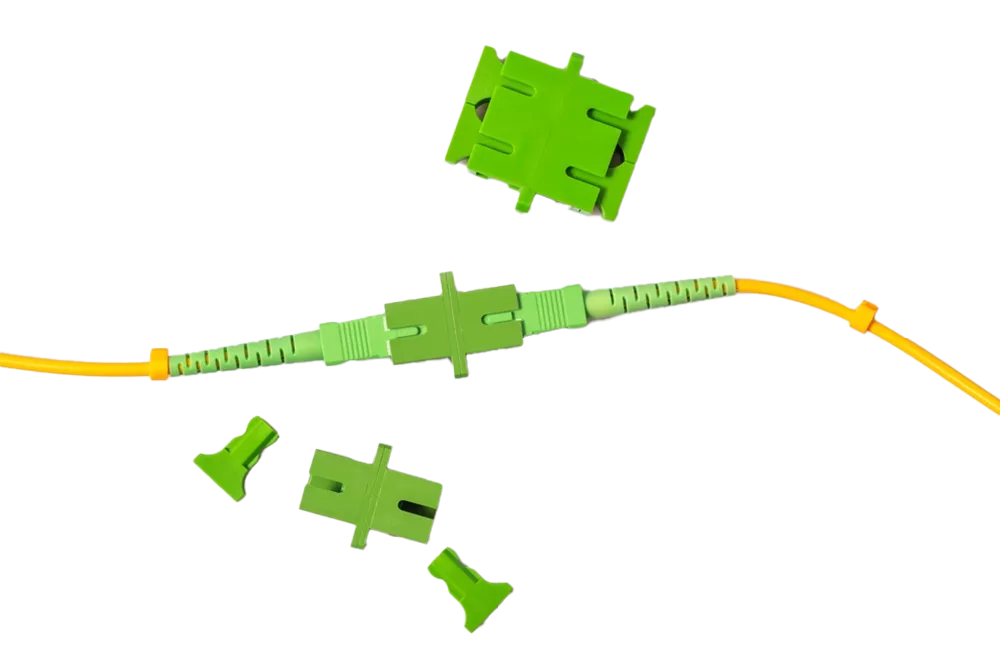

OPTIC FIBER ADAPTERS


  • Gateway Netconnect offers a full range of SC,LC ,ST , FC adapters that have compact design & high precision, which perform well under various circumstances & maintain good plug retention strength.
  • Simplex and duplex adapters are available.
  • The sleeves are basically recommended zirconia split type, the phosphor bronze split.

Features
  • Compact design
  • Telcordia, TIA/EIA,IEC compliance
  • High precision alignment
  • Low insertion and return loss
  • Self adjusting metal panel clips (for LC adapter)
  • Duplex adapter SC footprint (for LC adapter)
  • Screw-type locking stable and reliable (for FC Adapter)
  • Square Type design (for FC Adpater)
  • Threaded with nuts or snap-in coupling (for ST Adapter)
  • Body zinc alloy for long life ( for ST Adapter)
  • Available for D-shaped and Rectangular mount (for ST Adapter)
Specifications
SC Specifications

Insertion Loss : ≤ 0.20dB for Zirconia Sleeve

LC Specifications

Insertion Loss : ≤ 0.20dB for Zirconia Sleeve

FC Specifications

Insertion Loss : ≤ 0.20dB for Zirconia Sleeve

ST Specifications

Insertion Loss : ≤ 0.20dB for Zirconia Sleeve

Sleeve/Ferrule Withdrawal Force : 2.0N ~ 5.9N (200gf ~ 600gf)

Sleeve/Ferrule Withdrawal Force 1.0N ~ 2.5N

Sleeve/Ferrule Withdrawal Force 2.0N ~ 5.9N

Sleeve/Ferrule Withdrawal Force 2.0N ~ 5.9N

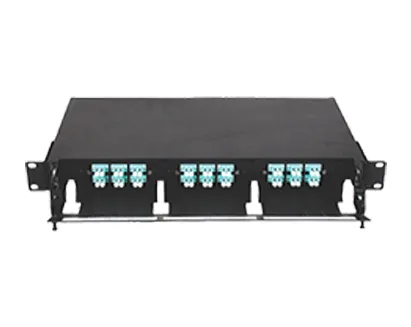

SLIDING LIGHT INTERFACE UNIT - RACK MOUNT


  • Gateway Netconnect 19-inch Sliding Optical Fiber Interconnection Units are the smaller basic patch panel & cabinet used in interconnecting, cross-connecting, or splicing applications in LANs at a premise location.
  • The LIU (optical fiber interconnecting unit) is modular and suitable for optical cable installation, bare fibers splicing & protection, pigtails storage & management.
  • The number of fibers determines which LIU is appropritae for application.
  • The 1U sliding LIU utilize easy glide ball bearing slide rails for smooth pullout & push in with a positive stop feature.

Features
  • Suitable for interconnect in cables distribution or between cables and optical equipments
  • Space saving with its compact & small design of enclosure
  • Front door design is easy for operation & fibers expansion
  • Can manage both splices and terminations
  • Can include adapter panels for maximum 24 ports LC/SC and 12 ports ST/FC terminations
  • Rubber fiber slotted bracket built-in, metal splice shelf to protect the fibers
  • Snap-in locker design, easy to change adapter panels for flexible configuration & easy installation
  • Top & bottom cable entry is easy with rubber plug
Parts Material Dimension Remarks
Metal Shelf Alum., 1.0mm Thickness 320 x 250 x 55mm (LxWxH) Black or Beige
Splice Tray Alum., 0.6mm Thickness 142 x 116 x 11mm (LxWxH) 12 fibers/Tray, 2 trays Max.
Adapter Panel Alum., 1.5mm Thickness 175 x 37mm (WxH) 1 Panel, Black or Beige
Cable Plug Rubber 28mm Diameter For 4 Cable Entries
Cable Saddle Plastic 28 x 24mm Inner Ring 2 pcs, with foam sticker

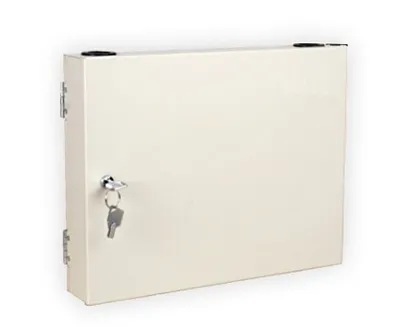

WALL MOUNT LIU


  • The Gateway Netconnect Wall Mount LIU is a modular enclosure that provides cross-connect and interconnect capabilities for splicing and terminating outdoor cables & FTTH drop cables in fiber access network.
  • It integrates three main functions of fiber splicing, cable winding & storing, and interface management.
  • The enclosure adopts good quality metal sheets & surface electrostatic spray technique, which is offering safety & good endurance performance.
  • It is the ideal design for building & campus networking.

Features
  • 1.5mm steel sheet for strong housing
  • Slim 1 Unit Mounting Height
  • Ball bearing slid rails with positive stop
  • Easy to work for patching the connectors
  • Front-mounted cable saddles for jumper management
  • Can manage both splices and terminations
  • Preassembled shelves in multiple configurations
  • Clear plastic cover to protect the fibers
  • 4 fiber saddles built-in for 900um tight buffered fiber winding & storing
  • Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
PARTS MATERIAL DIMENSION REMARKS
Metal Shelf Alum., 1.0mm Thickness 320x250x55mm (LxWxH) Black or Beige
Splice Tray Alum., 0.6mm Thickness 142x116x11mm (LxWxH) 12 fibers/Tray, 2 trays Max.
Adapter Panel Alum., 1.5mm Thickness 175x37mm (WxH) 1 Panel, Black or Beige
Cable Plug Rubber 28mm Diameter For 4 Cable Entries
Cable Saddle Plastic 28x24mm Inner Ring 2 pcs, with foam sticker
FC Connectors LC Connectors ST Connectors SC Connectors

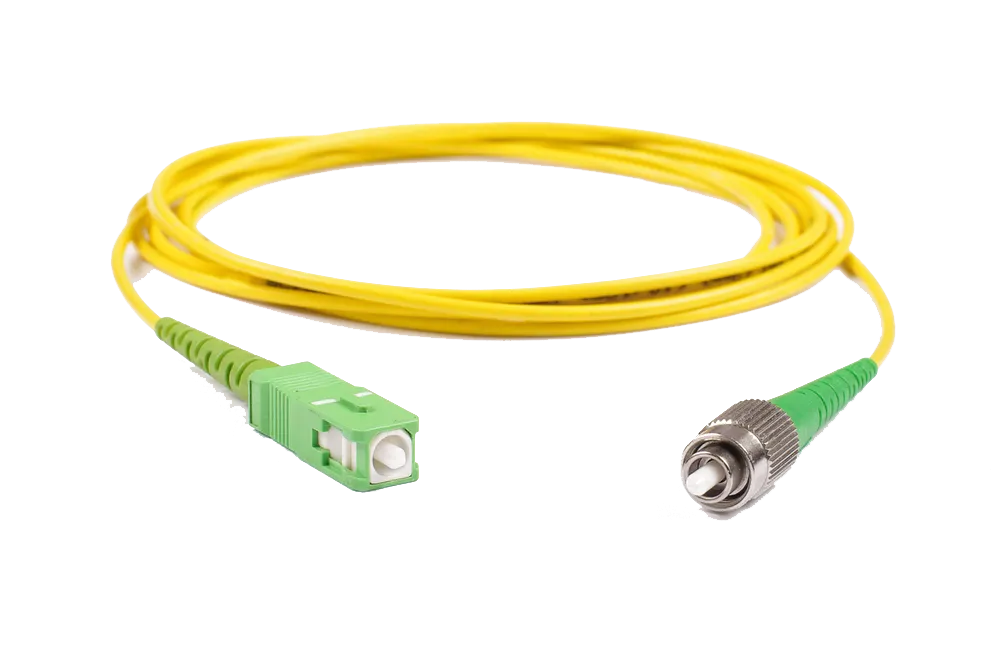

OPTIC FIBER CONNECTORS


  • An Optic fiber Connector terminates the end of an optic fiber cable and enables quicker conenction and disconnection.
  • The connectors mechanically couple and align the cores of fibers so that light can pass.
  • Better connectors lose very little light due to reflection or misalignment of the fibers.
  • A variety of optical fiber connectors are available, but SC and LC connectors are the most common types of connectors on the market.
  • Typical connectors are rated for 500–1,000 mating cycles.
  • The main differences among types of connectors are dimensions and methods of mechanical coupling.
  • Different connectors are required for for multimode, and for single-mode fibers.

Features
  • High Precision Ceramic Ferrule
  • High Precision Polymer housing
  • Simplex or Duplex
  • High Precision Nickel plated brass housing
  • APC Green Polymer housing with 900μm and 3mm strain relief boot
  • Low Insertion Loss
  • Low Return Loss
  • Ease of installation
  • Low cost
  • Reliability
  • Low environmental sensitivity
  • Ease of use

Measure : FC Connector

Insertion Loss dB (Single and Multi Mode) : < 0.3 Single mode and Multi mode

Return Loss : > 55dB UPC Style Ferrule > 60dB APC Style Ferrule

Pigtail Boot : 900μm black (Multi mode) blue(Single mode)

Cable Boot : 3mm black (Multi mode), blue (Single mode) 2mm upon request

Mating Cycle : Up to 1000 times

Ferrule Diameter : 2.5mm ± 0.001

Ferrule Tolerance Single Mode : 126 ± 0.5μm internal

Ferrule Tolerance Multi Mode : 127 ± 0.5μm internal

Finish : Pre-radiused PC end, radius 10 to 25mm

Operating Temperture : - 40°C to + 85 °C

Meet standard : IEC61754-20 Optical Fibre Connector Interface

Durability : IEC61300-2-2 Fibre Optic Interconnecting Devices

Performance : IEC61753-1 Optical Fibre interconnecting devices and passive components performance standard

OPTIC FIBER CONNECTORS


  • An Optic fiber Connector terminates the end of an optic fiber cable and enables quicker conenction and disconnection.
  • The connectors mechanically couple and align the cores of fibers so that light can pass.
  • Better connectors lose very little light due to reflection or misalignment of the fibers.
  • A variety of optical fiber connectors are available, but SC and LC connectors are the most common types of connectors on the market.
  • Typical connectors are rated for 500–1,000 mating cycles.
  • The main differences among types of connectors are dimensions and methods of mechanical coupling.
  • Different connectors are required for for multimode, and for single-mode fibers.

Features
  • High Precision Ceramic Ferrule
  • High Precision Polymer housing
  • Simplex or Duplex
  • High Precision Nickel plated brass housing
  • APC Green Polymer housing with 900μm and 3mm strain relief boot
  • Low Insertion Loss
  • Low Return Loss
  • Ease of installation
  • Low cost
  • Reliability
  • Low environmental sensitivity
  • Ease of use

Measure : LC Connector

Mating Cycle : Up to 1000 times

Ferrule Diameter : 1.25mm ± 0.001

Ferrule Tolerance Single Mode : 126 ± 0.5μm internal

Insertion Loss dB (Single and Multi Mode) : < 0.3 Single mode and Multi mode

Return Loss : > 55dB UPC Style Ferrule > 60dB APC Style Ferrule

Cable Boot : 2mm white, 3mm upon request

Ferrule Tolerance Multi Mode : 127 ± 0.5μm internal

Finish : Pre-radiused PC end, radius 10 to 25mm

Operating Temperture : - 40°C to + 85 °C

Meet standard : IEC61754-20 Optical Fibre Connector Interface

Durability : IEC61300-2-2 Fibre Optic Interconnecting Devices

Performance : IEC61753-1 Optical Fibre interconnecting devices and passive components performance standard

OPTIC FIBER CONNECTORS


  • An Optic fiber Connector terminates the end of an optic fiber cable and enables quicker conenction and disconnection.
  • The connectors mechanically couple and align the cores of fibers so that light can pass.
  • Better connectors lose very little light due to reflection or misalignment of the fibers.
  • A variety of optical fiber connectors are available, but SC and LC connectors are the most common types of connectors on the market.
  • Typical connectors are rated for 500–1,000 mating cycles.
  • The main differences among types of connectors are dimensions and methods of mechanical coupling.
  • Different connectors are required for for multimode, and for single-mode fibers.

Features
  • High Precision Ceramic Ferrule
  • High Precision Polymer housing
  • Simplex or Duplex
  • High Precision Nickel plated brass housing
  • APC Green Polymer housing with 900μm and 3mm strain relief boot
  • Low Insertion Loss
  • Low Return Loss
  • Ease of installation
  • Low cost
  • Reliability
  • Low environmental sensitivity
  • Ease of use

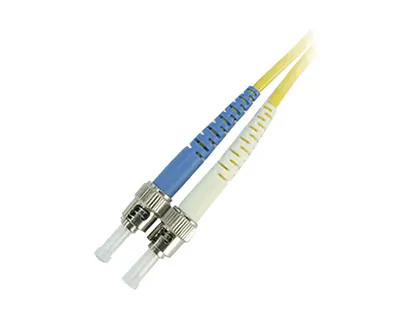

Measure : ST Connector

Insertion Loss dB (Single and Multi Mode) : < 0.3

Return Loss : > 50dB UPC Style Ferrule

Pigtail Boot : 900μm black (MM) yellow (SM)

Cable Boot : 3mm black, 2mm upon request

Mating Cycle : Up to 1000 times

Ferrule Diameter : 2.5mm ± 0.001

Ferrule Tolerance Multi Mode : 126 ± 0.5μm internal

Ferrule Tolerance Multi Mode : 127 ± 0.5μm internal

Finish : Pre-radiused PC end, radius 10 to 25mm

Operating Temperture : - 40°C to + 85 °C

Meet standard : IEC61754-20 Optical Fibre Connector Interface

Durability : IEC61300-2-2 Fibre Optic Interconnecting Devices

Performance : IEC61753-1 Optical Fibre interconnecting devices and passive components performance standard

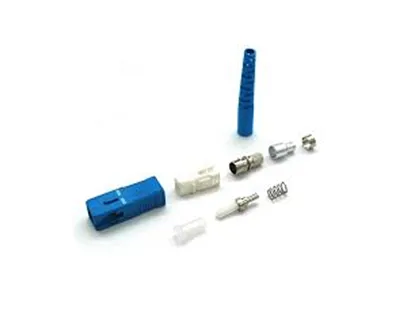

OPTIC FIBER CONNECTORS


  • An Optic fiber Connector terminates the end of an optic fiber cable and enables quicker conenction and disconnection.
  • The connectors mechanically couple and align the cores of fibers so that light can pass.
  • Better connectors lose very little light due to reflection or misalignment of the fibers.
  • A variety of optical fiber connectors are available, but SC and LC connectors are the most common types of connectors on the market.
  • Typical connectors are rated for 500�1,000 mating cycles.
  • The main differences among types of connectors are dimensions and methods of mechanical coupling.
  • Different connectors are required for for multimode, and for single-mode fibers.

Features
  • Suitable for interconnect in cables distribution or between cables and optical equipments
  • Space saving with its compact & small design of enclosure
  • Front door design is easy for operation & fibers expansion
  • Can manage both splices and terminations
  • Can include adapter panels for maximum 24 ports LC/SC and 12 ports ST/FC terminations
  • Rubber fiber slotted bracket built-in, metal splice shelf to protect the fibers
  • Snap-in locker design, easy to change adapter panels for flexible configuration & easy installation
  • Top & bottom cable entry is easy with rubber plug

Measure : ST Connector

Insertion Loss dB (Single and Multi Mode) : < 0.3

Return Loss : > > 50dB UPC Style Ferrule > 60dB APC Style Ferrule

Pigtail Boot : 900μm beige (Multi mode) blue(Single mode)

Cable Boot : 3mm beige (Multi mode), blue (Single mode) 2mm upon request

Mating Cycle : Up to 1000 times

Ferrule Diameter : 2.5mm ± 0.001

Ferrule Tolerance Multi Mode : 126 ± 0.5μm internal

Ferrule Tolerance Multi Mode : 127 ± 0.5μm internal

Finish : Pre-radiused PC end, radius 10 to 25mm

Operating Temperture : - 40°C to + 85 °C

Meet standard : IEC61754-20 Optical Fibre Connector Interface

Durability : IEC61300-2-2 Fibre Optic Interconnecting Devices

Performance : IEC61753-1 Optical Fibre interconnecting devices and passive components performance standard

P.C LC-QR Uniboot P.C LC APC P.C LC-Duplex APC P.C SC-Duplex PC P.C SC-RJ APC P.C FC APC P.C ST PC 2x P.C SC APC

Patch Cord LC-QR Uniboot - LC-QR Uniboot-Turquoise


  • Both sides fitted with LC-QR Uniboot PC connector.
  • Connector color: black.
  • Lever color: turquoise.
  • Fiber: MM G50/125 (OM3).
  • Cable: twinfiber cable 1.4mm, turquoise.
Available colors
Lime Green
Heather Violet
Blue
Green

PATCH CORD - LC APC


  • Both sides fitted with one LC APC 8° connector.
  • Connector color: Green.
  • Lever color: Green.
  • Fiber: SM E9/125 G.652.D (OS1, OS2).
  • Cable: Ø 2.0 mm, yellow.
Available colors
Blue

PATCH CORD LC-DUPLEX APC - LC-DUPLEX APC, GREEN/GREEN


  • Both sides fitted with one LC-Duplex APC 8° connector
  • Connector color: Green.
  • Lever color: Green.
  • Fiber: SM E9/125 G.652.D (OS1, OS2).
  • Cable: F8 2.0x4.1 mm, yellow.
Available colors
Blue
Turquoise
Limegreen
Heather violet
Orange
Blue

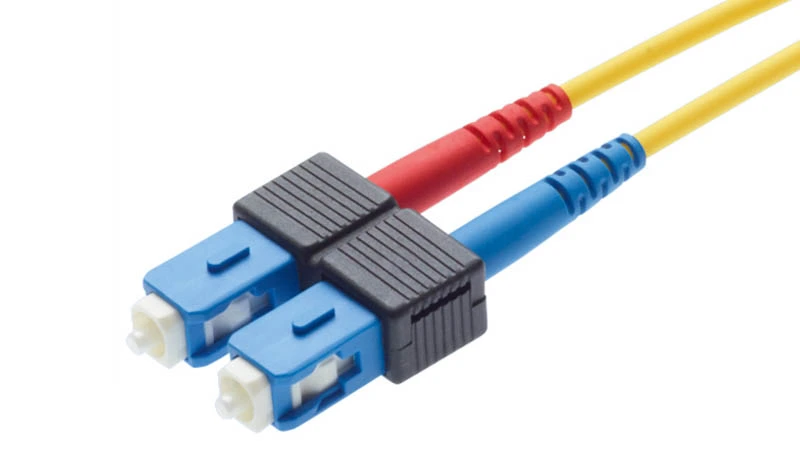

PATCH CORD SC-DUPLEX PC - SC-DUPLEX PC, BLUE


  • Both sides fitted with one SC-Duplex PC connector
  • Connector color: Green.
  • Fiber: SM E9/125 G.652.D (OS1, OS2).
  • Cable: F8 2.7x5.5 mm, yellow.
Available colors
Beige

PATCH CORD SC-RJ APC - SC-RJ APC, GREEN


  • Both sides fitted with one SC-Duplex PC connector
  • Connector color: Green.
  • Fiber: SM E9/125 G.652.D (OS1, OS2).
  • Cable: F8 2.7x5.5 mm, yellow.
Available colors
Blue
Beige/Turquoise
Beige/Orange
Beige/Blue
Black/Orange
Black/Black

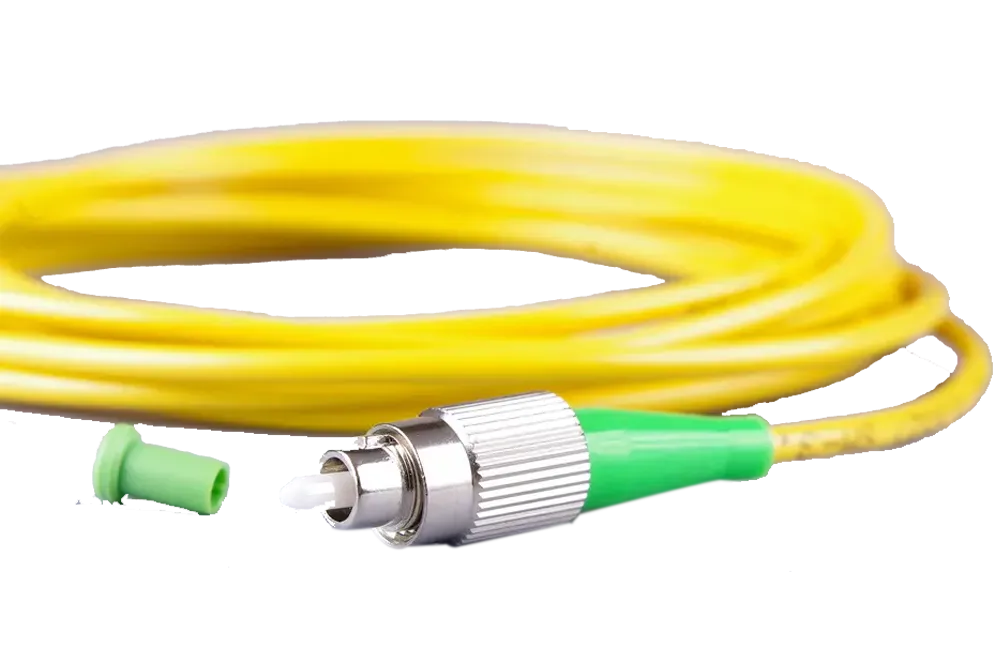

PATCH CORD FC APC - FC APC


  • Both sides fitted with FC APC 8° connector (small key).
  • Fiber: SM E9/125 G.652.D (OS1, OS2)
  • Cable: Ø 3.0 mm, yellow

PATCH CORD ST PC 2X - ST PC 2X


  • Both sides fitted with two ST PC connectors.
  • Fiber: MM G50/125 (OM4), bend-optimized
  • Cable: F8 2.7x5.5 mm, turquoise.

PATCH CORD SC APC


  • Both sides fitted with SC APC 8° connector.
  • Connector color: Green.
  • Fiber: SM E9/125 G.652.D (OS1, OS2).
  • Cable: Ø 3.0 mm, yellow.
Available colors
Blue

PATCH CORD E-2000™ APC, GREEN/WHITE - FC APC


Available colors
APC, Green/White
Blue
(Green/White) - SC APC, Green
(Green/White) - SC APC, Blue
(Blue/Blue) - SC PC, Blue
(Green/White) Compact APC - FC PC 2x
Compact PC - LC-Duplex PC (Blue/Blue)
Compact PC,(Black/Orange) - LC-Duplex PC
Compact PC (Blue/Blue) - LC-Duplex PC, Beige/Blue
Compact APC, (Green/White) - SC-Duplex APC, Green
Compact APC, (Green/White) - SC-Duplex PC, Blue
Compact PC, (Blue/Blue) - SC-Duplex PC, Blue
Compact PC, (Black/Orange) - SC-Duplex PC, Beige
Compact PC, (Black/Black) - SC-Duplex PC, Beige
Compact PC, (Black/Orange) - SC-RJ PC, (Black/Orange)
Compact PC, (Black/Black) - SC-RJ PC, (Black/Black)
Compact PC, (Black/Orange) - ST PC 2x
Compact PC, (Black/Black) - ST PC 2x
SC PC, Blue - FC PC
SC-Duplex PC, blue - LC-Duplex PC, (Blue/Blue)
SC-Duplex PC, Beige - LC-Duplex PC, (Beige/Turquoise)
SC-Duplex PC, Beige - LC-Duplex PC, (Beige/Orange)
SC-Duplex PC, Beige - LC-Duplex PC, (Beige/Blue)
SC-Duplex PC, Beige - SC-RJ PC, (Black/Orange)
SC-Duplex PC, Beige - SC-RJ PC, (Black/Black)
SC-Duplex PC, Beige - ST PC 2x
SC-Duplex PC, Beige - ST PC 2x
SC-RJ PC, Blue - LC-Duplex PC, (Blue/Blue)
SC-RJ PC, (Beige/Orange) - LC-Duplex PC, (Beige/Orange)
SC-RJ PC, (Black/Black) - LC-Duplex PC, (Beige/Blue)
SC-RJ PC, (Black/Orange) - ST PC 2x
SC-RJ PC, (Black/Black) - ST PC 2x
Pigtail FC Pigtail LC APC, green Pigtail ST

Pigtail FC


  • Screw thread locking type.
  • 500 mating cycles.

Pigtail LC APC - GREEN


  • Compact design (SFF).
  • 1.25 mm ferrule technology
  • Locking type latched push-pull.
Available colors
Pigtail LC PC, Blue
Pigtail LC PC, Beige

Pigtail SC APC - GREEN


  • Locking type latched push-pull.
  • Injection-molded PBT housing, UL 94 V-0 (flammability index).
Available colors
Pigtail SC

Pigtail ST


  • Bayonet locking type.
  • 500 mating cycles.
PLC SPLITTER - RACK MOUNT PLC SPLITTER - TUBE TYPE BOX TYPE SPLITTER Drop Cable FO Outlet ODF

PLC SPLITTER - RACK MOUNT


  • Planar Light Circuit (PLC) splitters exhibit uniform signal splitting for FTTH and PON network.
  • It is fabricated using silica optical waveguide technology.
  • Splitters come with SC adapter.
  • It meets GR-1209 and GR-1221 standard for performance and reliability

Features
  • Quartz substrate integrated waveguard
  • Good Uniformity and low insertion loss
  • Low Polarisation Dependent Loss
  • Excellent Environmental Stability
  • High Reliability
  • Channel-to-Channel uniformity
  • Small size
Specifications
  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks(PON)
  • Local Area Networks (LAN)
  • CATV Systems
  • Test Equipment
  • Monitoring system

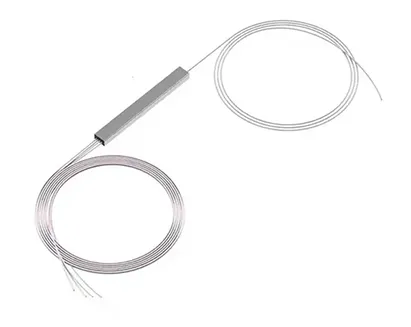

PLC SPLITTER - TUBE TYPE


  • Planar Light Circuit (PLC) splitters exhibit uniform signal splitting for FTTH and PON network.
  • It is fabricated using silica optical waveguide technology.
  • Splitters come with SC adapter.
  • It meets GR-1209 and GR-1221 standard for performance and reliability.

Features
  • Quartz substrate integrated waveguard
  • Good Uniformity and low insertion loss
  • Low Polarisation Dependent Loss
  • Excellent Environmental Stability
  • High Reliability
  • Channel-to-Channel uniformity
  • Small size
Specifications
  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks(PON)
  • Local Area Networks (LAN)
  • CATV Systems
  • Test Equipment
  • Monitoring system

BOX TYPE SPLITTER


  • Planar lightwave circuit (PLC) splitter is a type of optical power management device that distribute optical signals from Central Office (CO) to multiple premise locations.
  • The Box type design, can easily be placed into optical fiber distribution box, optical fiber junction box or many kind of box, which can reserve some space.
  • It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.

Features
  • Quartz substrate integrated waveguard
  • Good Uniformity and low insertion loss
  • Low Polarisation Dependent Loss
  • Excellent Environmental Stability
  • High Reliability
  • Channel-to-Channel uniformity
  • Small size
Specifications
  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks(PON)
  • Local Area Networks (LAN)
  • Test Equipment
  • Monitoring system

FTTH DROP CABLE


Optical Fiber Drop Cable for FTTH Networks - Gateway Netconnect Cable offering comprise Fiber/Bend Insensitive/Low Water Peak Single-mode Fiber Cable for indoor applications. Gateway Netconnect Fiber optic cables comply to ITU-T G657–A.


Features
  • No. of Fibres : 2F
  • Fiber Colour : Blue, Orange
  • Strength Member : ARP Rod - 2 Nos.
  • Sheath : Low Smoke Zero Halogen/PVC
  • Sheath Colour : Black
Specifications
Tensile Strength :
  • Installation : 100 N
  • Operation : 50 N

Minimum Bending radius : 20 mm

Crush Resistance : 500N/ 100x100

FTTH FO OUTLET


  • Fiber Optic Outlet is used in FTTH indoor application. It enables termination of fiber optic cables within residence and commercial buildings.
  • The bend radius of the individual fibers does not fall below 15mm, thereby minimize the signal transmission losses.

Features
  • Inner slack storage area ensures minimum bend radius
  • Inner tray for splice sleeve
  • Suitable for SC or LC connectors
  • Compact size: Takes less wall space
Specifications

Size (L*W*H) (mm) : 86*86*20

Adapter Type : SC, Duplex LC

No. of Adapter : 2

Storage of Fibers : G.657 or G.652 fiber applied

Max. Cable Diameter (mm) : 3 – 6

No. of Cable Entry : 5(Up, down, left, right, rear)

Splice Method : Fusion Splice (40mm sleeve applied)

Color : White

Material : Impact Plastic

ODF FTTH


  • Gateway Netconnect Optical Distribution Frame Units are the cabinets used in interconnecting, cross-connecting, or splicing applications in LANs at a premise location.
  • The optical distribution frame (ODF) is modular and suitable for optical cable installation, bare fibers splicing & protection, pigtails storage & management.
  • The number of fibers determines which ODF is appropriate for the application.

Features
  • High strength material
  • Full components
  • Easy to maintain and install
  • Excellent seal performance
  • Both burying and aerial are available
Specifications

Operation temperature : -40℃ to +45℃

Pressure resistance : 70 to 106KPa

Tensile force : 1000N(minimum value)

Strength : 15KV(DC)/1 min, no flashover

Relative humidity : 85%

Return loss : PC(≥45db) UPC(50≥db) , APC (≥60db) ,12 & 24 Ports, Rack mount & wall mount, High quality

Open Racks Floor Mount Rack Server Racks Wall Mounted Rack

OPEN RACKS

OPEN RACKS


  • An open rack allows for servers, test instruments, telecommunications components, tape drives and audio and video equipment to be organized in a spacious, yet rugged rack.
  • The electronics and computing devices come in rack mounted packages that are botted to the side frames of the racks.
  • If the electronics and computing devices are not rack mountable, they can be placed on shelves that are also bolted to the side frames of the racks.
  • Open racks vary in size and shape but usually have a standard cabinet width of 19’ and have no siding, hence the title “Open” rack.

Specifications
  • Frame : Aluminum Section “C” Channel
  • Standard : DIN STD, M6 Tapped holes
  • Power Coating : Black with "U" Marking
  • Conforms to DIN 41494
  • Available Sizes : 42U, & 45U
Accessories

Vertical Cable Duct/Wire manager (PVC)

Horizontal Wire manager (Metal/PVC)

A/C Power Distribution (6 socket) Horizontal

Front Panel Hardware

Ladder Kit

Floor Mount Racks

Floor Mount Racks


  • Floor Mount type of Racks are designed in such a way to allow total freedom & flexibility for the engineer to mount the equipment, to dress the cable.
  • Front glass door with lock and key, side panel & back metal door are detachable where engineers can access from all the sides of the cabinet, Top panel is designed to accommodate fans, and cable entry cutout is provided & the bottom panel is provided with cable entry cutout for bunch of cable to enter and consist of heavy duty castor wheels and leveing screws.
  • The structure is designed to give tremendous stability and load bearing capacity.

Specifications
  • Basic Frame : Steel
  • Standard : Conforms to DIN 41494
  • Power Coating : Frame [RAL 7035] Door [RAL 7037]
Accessories
  • 1U/2U Horizontal Cable organizer/Channel type
  • Horizontal Power Strip (5 Amps, 6 Sockets)
  • Modem tray
  • Cooling Fans
  • Castor Wheel with two breaks
  • Leveling Screws
Height U Overall Height Usable Height Overall Depth Usable Depth
17 972 757 650/800 500/650
22 1194 929 650/800 500/650
24 1283 1068 650/800 500/650
27 1417 1202 650/800 500/650
32 1639 1424 650/800 500/650
Server Racks

Server Racks


  • Gateway Racks provides top of the line server rack cabinets for any data center environment, large or small.
  • Offering sizes compatible with 19” rack mount equipment from all computer manufactures including; DELL, Compaq, HP, IBM, etc.
  • This enclosure has a rugged frame construction, which offers high stability as well as load bearing capability.
  • These are available in height of 36U, 42U & 45U and depth of 800mm, 1000mm & 1200mm.
  • We also custom build server rack to suit your needs.
  • We also deals with a complete line of server rack accessories, including; Shelves, power strips, fans vented/solid doors and side panels.

Specifications
  • Basic Frame : Steel
  • Front glass door with lock & Key
  • Rear metal door with louvers/perforation
  • Bottom Panel with castors, levelers & cable entry cutout
  • Conforms to DIN 41494
  • 19” Mounting angles
  • Available : 42U
  • Construction : Welded
  • Side panels with latch
  • Top panel with fans and cable entry cut out
  • Powder coating-Frame [RAL 7035], Door [RAL 7037]
  • Toughened Glass 5mm thickness
  • Load: 750kg with castor, 1250kg with levelers
Height U Overall Height Usable Height Overall Depth Usable Depth
42U/600 x 650 2100 1869 650 525
42U/600 x 800 2100 1869 800 700
42U/600 x 1000 2100 1869 1000 900
42U/800 x 800 2100 1869 800 700
42U/800 x 1000 2100 1869 1100 900
WALL MOUNT RACKS

WALL MOUNT RACKS


  • These racks are used in smaller networking areas where the floor space is minimum like Hospitals, Browsing Centers, Small Networked Bank, etc.
  • These products are very easy to configure at site.

DOUBLE SECTION

These type of wall mount racks are used to access at the rear end of the equipment

SIDE OPEN

These type of wall mount racks are used to access both sides.

Technical Specification
  • Basic Frame : Steel
  • Standard : Conforms to DIN 41494
  • Power Coating : Frame [RAL 7035]
  • Door [RAL 7037]
  • Conforms to DIN 41494
  • Toughened Glass 5mm thickness
  • Available with lock & key
  • Available Sizes : 4U, 6U, 9U, 12U, 15U
Accessories
  • 1U/2U Horizontal Cable organizer/Channel type
  • Horizontal Power Strip (5 Amps, 6 Sockets)
  • Modem tray
  • Cooling Fans
Height U Overall Height Usable Height Overall Depth Usable Depth
4 278 178 325/450/500 275/400/450
6 367 267 325/450/500 275/400/450
9 500 400 450/500 400/450
12 635 534 450/500 400/450
15 767 668 450/500 400/450
Commercial Professional Licensed Radios License Free Accessories

H250A Walkie Talkie H350B Walkie Talkie

H250A INDIA'S TOP SELLING MODEL


Product feature
  • Battery capacity: 2900mAh
  • Transmit power: 2.5 watts
  • Range: 2.5 kms
  • Torch light
  • FM radio
  • Channels: 16
  • MIL/STD: Rain/Dust resistant
  • 2 tone signalling, whisper mode wire clone, 3×2 programmable buttons, siren

Model Talk PRO H250A Audio distortion ≤ 5%
Frequency range 350-390Mhz Spurious emissions ≤ 38dB
Channels 16 (Expandable to 99) FM noise ≤ 40dB
Channel space408 25K Hz/12.5KHz Maximum freguency deviatoin ≤± 5KHz (wide) ≤± 2.5KHz (narrow)
Operating temperature range -20°C to 60°C Receiver UHF
Power supply 3.7V DC Frequency stability ± 5ppm
Dimension 60(L)x43(W)x114(H)mm Sensitivity (at 12dB SINARD) Better than 0.2μV (wide)
Better than 0.2μV (narrow)
Weight 219g (including the battery pack) Receiving FM bandwidth ≤± 7KHz (wide) ≤± 3KHz (narrow)
Transmitter VHF/UHF Adjacent channel selectivity 80dB (wide) 50dB (narrow)
Transmitting power ≤ 3W Intermodulation rejection ratio 80dB (wide) 50dB (narrow)
Frequency stability ± 2.5ppm Anti interfere of spurious wave 80dB (wide) 50dB (narrow)
Modulated mode 16K F3E (wide 8K F3E narrow) Audio output power 500mW

H350B Small size, Super value


Product feature
  • Battery capacity: 2900mAh
  • Transmit power: 2.5 watts
  • Range: 2.5 kms
  • Torch light
  • FM radio
  • Channels: 16
  • MIL/STD: Rain/Dust resistant
  • 2 tone signalling, whisper mode wire clone, 3×2 programmable buttons, siren

Model Talk PRO H350B Audio distortion ≤ 5%
Frequency range 350-390Mhz Spurious emissions ≤ 38dB
Channels 16 (Expandable to 99) FM noise ≤ 40dB
Channel space408 25K Hz/12.5KHz Maximum freguency deviatoin ≤± 5KHz (wide) ≤± 2.5KHz (narrow)
Operating temperature range -20°C to 60°C Receiver UHF
Power supply 3.7V DC Frequency stability ± 5ppm
Dimension 60(L)x43(W)x114(H)mm Sensitivity (at 12dB SINARD) Better than 0.2μV (wide)
Better than 0.2μV (narrow)
Weight 219g (including the battery pack) Receiving FM bandwidth ≤± 7KHz (wide) ≤± 3KHz (narrow)
Transmitter VHF/UHF Adjacent channel selectivity 80dB (wide) 50dB (narrow)
Transmitting power ≤ 3W Intermodulation rejection ratio 80dB (wide) 50dB (narrow)
Frequency stability ± 2.5ppm Anti interfere of spurious wave 80dB (wide) 50dB (narrow)
Modulated mode 16K F3E (wide 8K F3E narrow) Audio output power 500mW
H350 Walkie Talkie H450A Walkie Talkie

H350 plus Multi-function super value


Product feature
  • Battery capacity: 2900mAh
  • Transmit power: 2.5 watts
  • Range: 2.5 kms
  • Torch light
  • FM radio
  • Channels: 16
  • MIL/STD: Rain/Dust resistant
  • 2 tone signalling, whisper mode wire clone, 3×2 programmable buttons, siren

Model Talk PRO H250A Audio distortion ≤ 5%
Frequency range VHF:136~174MHz, UHF:350~390MHz; 400~470MHz; 470-520MHz FM distrotion ≤ 5%
Channel capacity 16(15+S) Residual FM -45dB / -40dB
Channel spacing 25.0KHz/ 12.5KHz Adjacent channel power -70dB / -60dB
Frequency Stability ≤±2.5 ppm Spurious and Harmonics ≤- 36dBm
Operating temperature -35～+60℃ Sensitivity 0.22μV / 0.25μV
Antenna impedance 50 ohms Adjacent channel selectivity 70dB / 60dB
Operating voltage 7.4V Intermodulation reject ratio 65dB
Weight 252g (with antenna & battery） Spurious response reject ratio 70dB
Dimension 118 x 55 x 34 mm (H x W x D) S/N 45dB / 40dB
Battery 2200mAh (Li-ion) Rated audio power output 1.5Watt
RF power（H/L） UHF: 4W/1W VHF: 5W/1W Rated audio distortion ≤5%

H450A ROUGH USAGE WITH HEAVY TALK TIME


Product feature
  • Battery capacity: 2200mAh
  • Transmit power: Upto 7 watts
  • IP54 MIL Standards
  • Xenon torch light 15 ft beam
  • Hetrodyne receiver for weak signal
  • Channels: 16
  • 2 tone signalling, whisper mode, internal noise cancelling, xenon torchlight, best suited for users with long talk-time

Model Talk PRO H350B Audio distortion ≤ 5%
Frequency range UHF:350~390MHz FM distrotion ≤ 5%
Channel capacity 16(15+S) Residual FM -45dB / -40dB
Channel spacing 25.0KHz/ 12.5KHz Adjacent channel power -70dB / -60dB
Frequency Stability ≤±2.5 ppm Spurious and Harmonics ≤- 36dBm
Operating temperature -35～+60℃ Sensitivity 0.22μV / 0.25μV
Antenna impedance 50 ohms Adjacent channel selectivity 70dB / 60dB
Operating voltage 7.4V Intermodulation reject ratio 65dB
Weight 252g (with antenna & battery） Spurious response reject ratio 70dB
Dimension 118 x 55 x 34 mm (H x W x D) S/N 45dB / 40dB
Battery 2200mAh (Li-ion) Rated audio power output 1Watt
RF power（H/L） UHF: 6W/7W Adjustable UHF: 7W/1W Rated audio distortion ≤5%
Digital DMR Radio - TD511 Digital DMR Radio - TD510 Digital DMR Radio - TR8050 Analog - LF446 Analog - AH350

Talkpro TD 511 DMR Tier II Portable Handheld


With TalkPRO Digital Two-Way Radios, you are better connected, safer and more productive. The TD Series offers high performance with voice and data and is designed for skilled professionals. These next generation radios deliver complete connectivity to your organization.

Product feature
  • 1W Speaker for Loud Audio
  • Inbuilt Bluetooth
  • GIS function Location Tracking
  • Water & Dust Protection (IP68)
  • Tested & Approved by Govt. Lab
  • 1024 channels
  • Meets RDSO specifications
Do you want to buy this?
Then Call now to the number is +91 80 23333119

Talkpro TD 510 DMR Tier II Portable Handheld


With TalkPRO Digital Two-Way Radios, you are better connected, safer and more productive. The TD Series offers high performance with voice and data and is designed for skilled professionals. These next generation radios deliver complete connectivity to your organization.

Product feature
  • Advanced Encryption AES256
  • Inbuilt Torchlight
  • Auto roaming
  • Water & Dust Protection (IP67)
  • Indian Government Lab Tested
Do you want to buy this?
Then Call now to the number is +91 80 23333119

Talkpro TR8050 Digital DMR IP Connectivity Repeater


Talkpro TR8050 Repeater is designed for professional radio users requiring extended radio coverage and advanced functionality.  It improves Voice and data radio communication and eliminates dead spots. The IP54 environmental protection rating provides radio users with outstanding robustness in a flexible mounting package.

Product feature
  • 100% Duty Cycle Repeater
  • Multisite IP Network Connectivity
  • Dual Slot. Operation (Digital & Analog)
  • 50W Power Output
  • Dispatch Functionality
  • Auto roaming
  • Inbuilt Power Supply Unit
Do you want to buy this?
Then Call now to the number is +91 80 23333119

LF446 - Analog


Talkpro TR8050 Repeater is designed for professional radio users requiring extended radio coverage and advanced functionality.  It improves Voice and data radio communication and eliminates dead spots. The IP54 environmental protection rating provides radio users with outstanding robustness in a flexible mounting package.

Product feature
  • 99 channels capacity
  • 32 pre-programme
  • Backlit LCD 7 Keys
  • Busy Channel Lockout
  • Timeout Timer
  • Priority Scanner
  • Battery Level Indicator
  • Noise Cancelling microphone
  • Tail Squelch eliminate
  • Makes phone calls through telephone interconnect device
Do you want to buy this?
Then Call now to the number is +91 80 23333119

Product specifications
General Transmitter Receiver
Coverage Area 5-6 Km(open area) RF Output Power 4w Receiving Sensibility ≤0.2μV
Frequency range 350-351Mhz Frequency Stability ± 5ppm Audio distortion ≤5%
Channels 99(32 Channels Pre-Programmed) Modulation Limiting ≤ 2.5KHZ Audio Response +2dB to -10dB
Operating temperature range -20°C to 50°C Audio Distortion ≤ 5 % Co-channel Suppression ≥-8dB
Operating Voltage DC 72V(± 20%) Modulation Character +3db – -3db Adjacent Ch Selectivity ≥55dB
Operate Mode Simple  Or Semi Duplex Adjacent Ch Power ≥ 65db Intermodulation Rejection ≥55dB
Antenna impedance 50 Ohms Spurious Radiation ≤ 75μV Spurious Response ≥65dB
Weight 190g (including the battery & antenna) Occupied Bandwidth ≤ 16KHz Blocking ≥85dB
Dimension(WxHxD) 116x57x34mm

Optional Accessories
  • High Capacity Battery
  • Helical Antenna
  • Speaker Microphone
  • D-Shaped Earphone
  • Heavy Duty Carrying Case
  • Rapid Charger
  • Charging Adaptor

AH350 - Analog


Talkpro TR8050 Repeater is designed for professional radio users requiring extended radio coverage and advanced functionality.  It improves Voice and data radio communication and eliminates dead spots. The IP54 environmental protection rating provides radio users with outstanding robustness in a flexible mounting package.

Product feature
  • Loud and Clear Audio
  • Voice Recording(Optional)
  • IP67 Water Resistance & Dust Protection
  • Channel Announcement
  • Emergency Alarm
  • 2600mah LI-ON Battery
  • Tested by Govt Lab
Do you want to buy this?
Then Call now to the number is +91 80 23333119

Product specifications
General Transmitter Receiver
Type of Working Simplex/Semi Duplex Power Output at Antenna Port 5w Sensitivity 0.25 µV for 12dB SINAD
Frequency range 136-174 Mhz Frequency Stability ± 2.5ppm Adjacent channel selectivity 60 dB for 12.5 kHz channel separation.
Channels 32 Frequency Deviation ± 2.5 kHz @12.5kHz Spurious and image rejection 65 dB
Channel Separation 12.5 kHz Modulation Sensitivity 1 to 10 mV at 1 kHz at mic. Input for (+/-) 1.5 kHz @ 12.5kHz Audio output 1w
IP Rating IP67 Modulation Distortion Less than 5% at 1 kHz reference for (+/-) 1.5 kHz @ 12.5kHz AF Response Between +l dB & -3 dB , 350-2700 Hz with 1kHz ref
Weight 330grams Modulation Fidelity (+) 1, (-) 3dB of 6dB/Octave, 350Hz to 2700Hz @ 1 kHz Squelch sensitivity 0.25 µV
Spurious Emission 70 dB. Inter-modulation rejection 60 dB
Hum & Noise -34dB @12.5 kHz.
VSWR 1.5

Optional Accessories
  • Multi Unit Charger
  • Carrying Case
  • D Type Headset
  • Remote Mic
  • Heavy Duty Headset

Optional accessories

6 Position Charger
Programming Cable
Ear Piece
Speaker Microphone
Bluetooth Earpiece

Standard accessories

Battery
Belt Clip
Hand Strap
Stubby Antenna
Charger
LF446 X-10 4GL

LF446(4-6 Kms)


TALK PRO X-10 is a cost-effective analog, two-way radio designed for the Indian marketplace. Delightfully compact with a comprehensive analog feature kit that includes Squelch Levels, Auto Power Save, Low Battery Alert, BCL, TOT and CTCSS/CDCSS, the X-10 is curated to deliver convenience and efficiency at a budget friendly price tag.

Product feature
  • Battery capacity 2500 mAh Li-ion (2 days talk time)
  • Range 5/6 km in open area
  • Torchlight - 15ft beam
  • 99 channels (32 pre-programmed)
  • Private/Selective call with caller number display
  • No Government permission
  • No Annual recurring fee to Government
  • You can freely use this walkie talkie in India without a license
Category: License Free Walkie Talkies
Also Available on GeM
Do you want to buy this?
Then Call now to the number is +91 80 23333119


IN THE BOX
  • Charger
  • Antenna
  • Wall Adaptor

X-10(2 Kms)


TALK PRO X-10 is a cost-effective analog, two-way radio designed for the Indian marketplace. Delightfully compact with a comprehensive analog feature kit that includes Squelch Levels, Auto Power Save, Low Battery Alert, BCL, TOT and CTCSS/CDCSS, the X-10 is curated to deliver convenience and efficiency at a budget friendly price tag.

Product feature
  • Battery Capacity 2300 mAh (2 days talk time)
  • Range 2/3 km in open area
  • 750 mW Speaker for Loud Audio
  • Squelch Levels
  • No Government permission
  • No Annual recurring fee to Government
  • You can freely use this walkie talkie in India without a license
Category: License Free Walkie Talkies
Also Available on GeM
Do you want to buy this?
Then Call now to the number is +91 80 23333119

Frequency Range UHF:446-446.2MHz Channel Capacity 16
Channel Spacing 25KHz / 12.5KHz Operating Temperature -20 C ~ +60 C
Antenna Impedance 50Ω Operating Voltage DC 3.7V(±20%)
Battery Capacity 2300 mAh Frequency Stability ≤±2.5 ppm
Dimensions 58(L)*33.5(W)*155(H)mm Weight 141g(Including Battery Pack)
Power Output ≤2W Modulation 11KoF3E/16KoF3E
Rated Audio Distortion ≤5% Adjacent Power 60dB
Modulation Limitation ≤5 KHz(Wide) / 2.5 KHz(Narrow) Sensitivity ≤-123dBm (12dB SINAD)
Adjacent Selectivity ≥60dB(Wide) / 55dB(Narrow) Intermodulation Rejection Radio ≥60dB(Wide) / 55dB(Narrow)
Spurious Suppressions ≥60dB(Wide) / 55dB(Narrow) Rated Audio Output Power 750mW
Rated Audio Distortion ≤5%

IN THE BOX
  • USB Cable
  • Adaptor
  • Belt Clip
  • Hand Strap

4GL(Above 6 Kms)


TalkPRO PoC (Press to Talk Over Cellular) walkie talkies do not require an Operating License or payment or recurring annual fees for License renewal. They work on the latest LTE / RoIP technology.

Since distance is no limitation, these radios can be used for city wide coverage by Municipal Corporations, Electricity Distribution Companies and Railways. Large factories, City Malls with multiple basements, Logistic and Courier companies can get extensive coverage and will not require Repeaters or Boosters for covering hard to reach areas.

Product feature
  • Display with keyboard
  • OTAP (Over The Air Programming)
  • Add, delete modify, talk groups, Active / Deactivate stolen/ lost radio
  • GPS Radio Location Tracking
  • PC Programming
  • Unlimited No. of Channels / Talk Groups
  • Bluetooth (inbuilt) V40,V3.0,V2.1
  • Wi-Fi (inbuilt) 802.11b/g/n
  • User administrator E- Control panel access
  • Private call / Group call / Selective Call in full duplex mode
  • Kill / stun / revive / lost or stolen radio
  • Emergency call interrupt / call override / S.O.S
  • Voice recording and playback
  • IP 54 Dust / Water Protection
  • Battery 5200 mAh (Li-poly Battery)
Category: License Free Walkie Talkies
Also Available on GeM
Do you want to buy this?
Then Call now to the number is +91 80 23333119


Product Specifications
Frequency Range 800 – 1200Mhz Antenna Impedance 50Ω
R.F. Transmit Power Class 1,2 & 4 Audio Output 1000 MW
Operating Temperature -30 C ~ +50 C Current Consumption 250mA
Operating Voltage 4.2 V DC GPS Sensitivity (-)144dBm ~ (-)159dBm
Safety Environment compliance EN 60950 +1:2006 A11:2009A7:2010+A12:2011+A2:2013

IN THE BOX
  • High Capacity Battery
  • Charging Adapter
  • Helical Antenna

TH289


Talk Pro’s versatile mobile data network walkie-talkie radios communicate by sending digitised voice data via the mobile phone data network allowing long-distance, even nationwide, unlimited range walkie-talkie operation as long as there is mobile phone network coverage.

Product feature
  • Dual Band (GSM &WCDMA)
  • OTAP (Over The Air Programming)
  • Add, delete modify, talk groups, Active / Deactivate stolen/ lost radio
  • GPS Radio Location Tracking
  • PC Programming
  • Unlimited No. of Channels / Talk Groups
  • User administrator e- control panel access
  • Private call / group call / selective call in full duplex mode
  • Kill / stun / revive / lost or stolen radio
  • Emergency call interrupt / call override / s.o.s
  • Ip 54 dust / water protection
  • Battery 5200 mah (li-poly battery)
  • Unlimited Talk Range
  • >.5w Audio Output Power
  • Ip 54 dust / water protection
  • Panic Button
  • Non-screen – rugged design
Category: License Free Walkie Talkies
Do you want to buy this?
Then Call now to the number is +91 80 23333119


Product Specifications
Size (body) 110mm x 62mm x 42mm
Size (body) 110mm x 62mm x 42mm
Antenna 40mm
Weight 310g
Channels 16 (on these radios, “channels” are really “user groups”
Power n/a – uses power needed to use mobile phone network
Battery 4600mAh
Accessories available Many earpiece/mics and headsets (they use popular “Kenwood” twin-jack accessory socket)
Battery Charger & Adapter Water proof bag Heliflex Antenna Earphone Standard Noise Cancelling Headset Carrying Case Earphone with Boom mic Ear Piece 4GL Heavy Duty Remote Microphone X10 Belt Clips

Walkie Talkie Battery


Product details:

High Capacity Li-ion batteries for Talkpro Radios with beltclip.

Charger & Adapter


Product details:

Chargers and adapters are available for various TalkPro walkie talkies. The batteries can be charged in 3 hours. A dual colour LED indicator shows the charge status.
Input voltage: AC 230-240V 50-60Hz
Output voltage: DC 12V 1A

Water proof bag of Walkie Talkie


Product details:

It is designed to protect the radio from being immersed in water. The bag is of high quality and ensures the operation and functions of the Walkie Talkie is not compromised while inside the bag.

Heliflex Antenna


Product details:

Long Heliflex Antenna for Talkpro Radios.

Product specifications:
  • Color: Black
  • Type: Long

Earphone Standard


Product details:

D shaped headset with ith inline PTT/MIC/VoX. Standard earpiece/earset provides handsfree mobility that matches your business budget.

Noise Cancelling Headset


Product details:

It utilises an active noise cancelling microphone. The inclusion of two sealed electret microphones provide extremely effective noise cancelling characteristics at high noise levels. The ear muffs have been fitted with acoustic foam that effectively reduces unwanted background noise when used in high noise areas. The unique design of this two way radio accessory allows this model to be used with Push-To-Talk assemblies for a wide range of popular two way radios.

Carrying Case


Product details:

“Made of nylon material, the carrying case is available in different styles to suit each user’s comfort. It is useful in leaving your hands free, keeping the device safe and is convenient to use. Carrying case comes with a three-angle rope lanyard, four hooks and adjustable shoulder strap (it needs to be adjusted only once).

Product specifications:
  • Color: Black
  • Length: Includes string, 2.3m

Earphone with Boom mic


Product details:

Professional style headset with boom microphone. Features rugged headset with an adjustable band. PTT/VOX Switch, Support both Push to talk or Handsfree modes, Boom Microphone flips up out of the way when not in use

Ear Piece 4GL


Product details:

1-pin 2.5mm walkie talkie earpiece is ideal for use with your walkie-talkie. It is great for handsfree use, covert or discrete operations and offers high quality sound.

Heavy Duty Remote Microphone


Product details:

The compact heavy-duty remote speaker is a water-resistant unit that allows talking and listening without removing radio from the belt or case. It has a coiled cord and Push-to-Talk switch. A clothing clip on the microphone back clips securely onto a shirt or collar.

X10 Belt Clips


Product details:

TalkPRO’s X-10 belt clip offers hands-free convenience, keeping your walkie-talkie securely fastened and easily accessible. Its durable design ensures the X-10 stays within reach, boosting efficiency and mobility in every situation.


EP65 EP75 EP86 EP92 EP98 EP105 EP110

Evota EP65 Interactive Flat Panel 65 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 65”
  • 4K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 20 / 40 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 65"
Response Time 6.5ms
Aspect Ration 16:09
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 20/40 Multi Touch
Technology Infrared
Display Area 1428.48 x 803.52
Pixel Pitch 0.41835x0.41835mm
Resolution 3840x2160 (Ultra HD)
Refreshing Frequency 50Hz/60Hz
Display Color 1.06 Billion (10-Bit)
Contrast Ratio 5000:01:00
Dynamic Contrast 100000:1
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450 cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU Quad Core
GPU Mali-G52 MP2
AUDIO
Speaker 16W x 2
Sound Pressure Level 82 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 3
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH - B X 2
DP IN NA
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF NA
RS232 Yes
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 1521x98x915
Gross 1697x220x1071
weight Net 44kg
Gross 49kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP75 Interactive Flat Panel 75 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 75”
  • 4K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 20 / 40 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 75"
Response Time 6.5ms
Aspect Ration 16:09
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 20/40 Multi Touch
Technology Infrared
Display Area 1649.664 x 927.936
Pixel Pitch 0.41835x0.41835mm
Resolution 3840x2160 (Ultra HD)
Refreshing Frequency 50Hz/60Hz
Display Color 1.06 Billion (10-Bit)
Contrast Ratio 5000:01:00
Dynamic Contrast 100000:1
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450 cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU Quad Core
GPU Mali-G52 MP2
AUDIO
Speaker 16W x 2
Sound Pressure Level 82 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 3
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH - B X 2
DP IN NA
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF NA
RS232 Yes
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 1762x100x1034
Gross 19113x280x1225
weight Net 70kg
Gross 77kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP86 Interactive Flat Panel 86 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 86”
  • 4K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 20 / 40 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 86"
Response Time 6.5ms
Aspect Ration 16:09
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 20/40 Multi Touch
Technology Infrared
Display Area 1895.04x1065.96
Pixel Pitch 0.41835x0.41835mm
Resolution 3840x2160 (Ultra HD)
Refreshing Frequency 50Hz/60Hz
Display Color 1.06 Billion (10-Bit)
Contrast Ratio 1600:01:00
Dynamic Contrast 100000:1
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450 cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU Quad Core
GPU Mali-G52 MP2
AUDIO
Speaker 16W x 2
Sound Pressure Level 82 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 3
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH - B X 2
DP IN NA
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF NA
RS232 Yes
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 1988x99.6x1178
Gross 2211x280x1370
weight Net 79kg
Gross 87kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP92 Interactive Flat Panel 92 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 92”
  • 5K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 50 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 92"
Response Time 6.5ms
Aspect Ration 21:09
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 50 Multi Touch
Technology Infrared
Display Area 2141.952x903.636
Pixel Pitch 0.41835x0.41835mm
Resolution 5120x2160
Refreshing Frequency 60Hz
Display Color 1.07 Billion (10-Bit)
NTSC 72%
Contrast Ratio 5000:01:00
Dynamic Contrast
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU A76 x 4 + A55 x 4
GPU Mali-G610 MP4
AUDIO
Speaker 20W x 2
Sound Pressure Level 85 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 4
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH-B X 3
DP IN DP IN x 1
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF PCM Output Format x 1
RS232 RS232 x 1
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 2182x943.8x85.2
Gross 2360x225x1072
weight Net 94kg
Gross 103kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP98 Interactive Flat Panel 98 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 98”
  • 4K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 20 / 40 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 98"
Response Time 6.5ms
Aspect Ration 16:09
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 20/40 Multi Touch
Technology Infrared
Display Area 2158.848x1214.352
Pixel Pitch 0.41835x0.41835mm
Resolution 3840x2160 (Ultra HD)
Refreshing Frequency 50Hz/60Hz
Display Color 1.06 Billion (10-Bit)
Contrast Ratio 1600:01:00
Dynamic Contrast 100000:1
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450 cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU Quad Core
GPU Mali-G52 MP2
AUDIO
Speaker 16W x 2
Sound Pressure Level 82 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 3
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH - B X 2
DP IN NA
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF NA
RS232 Yes
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 2257x118x1335
Gross 2450x385x1555
weight Net 104kg
Gross 113kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP105 Interactive Flat Panel 105 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 105”
  • 5K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 50 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 105"
Response Time 6.5ms
Aspect Ration 0.88125
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 50 Multi Touch
Technology Infrared
Display Area 2449.92x1033.56
Pixel Pitch 0.4785x0.4785
Resolution 5120x2160
Refreshing Frequency 60Hz
Display Color 1.07 Billion (10-B)
NTSC 0.9
Contrast Ratio 166.6673611
Dynamic Contrast
Viewing Angle 178/178
Back Light Unit DLED
Brightness 350cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU A76 x 4 + A55 x 4
GPU Mali-G610 MP4
AUDIO
Speaker (16W + 15W) x 2
Sound Pressure Level 82 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 4
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 6
USB Type - C Type - C x 2
USB TOUCH - B USB TOUCH-B X 3
DP IN DP IN x 1
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF PCM Output Format x 1
RS232 RS232 x 1
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 2507.2x103.2x1130.1
Gross 2668x280x1305
weight Net 119kg
Gross 128kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Evota EP110 Interactive Flat Panel 110 inch


Product features:

Evota Multi Touch Interactive Display enhances your meeting experiences. Work together in an effective and efficient way, collaborate, share, Annotate, conference and more. Being Android powered you can Plug in and start showing presentation, display documents, video directly from pen drive and annotate on screen and save as image for future reference without PC. It’s Interactive Multi touch technology gives businesses the opportunity to present and collaborate efficiently

  • Size 110”
  • 5K Ultra High Definition Resolution.
  • Powered by Android.
  • Quick Start & User –Friendly just switch on display power and start play any office files or start white-board application.
  • Save and Share through QR code.
  • Annotation embedded software lets you write and draw on almost anywhere and everywhere, highlight and transform documents and images on screen real time.
  • Multi- touch 50 point multi touch capabilities with precision to deliver superior writing performance and touch accuracy. Multiple user can simultaneously write or draw on the display system using finger/ stylus at same time.
  • Whiteboard software include features like draw, choose, pens, annotate, erase, colour, shapes, sizes, text, edit, fonts, hand writing recognition, stamp, move, capture picture, video, save, rotate, undo, image gallery, print, floating key-board and background etc.
  • Lecture recording & broadcasting solution.
  • Wireless Collaboration with Tablet & Mobile Device.
  • Multi Monitoring software allow you remotely set up and manage display content and flashing messages from PC or laptop. You can remotely turn the display off, adjust volume level and other setting via control software.
  • Play Contents like office files, Video Files and Images open directly with inbuilt application and start processing without need to connect to PC.
  • Multiple Source Connect variety of devices like camera, DVD, Disk TV, Laptop, Desktop or any RGB or HDMI output device.
  • Inbuilt Speakers with technology to deliver best audio without any external arrangement.
  • Detachable PC Module with option of Intel i5/ i7.

Display
Size 110"
Response Time 6.5ms
Aspect Ration 0.88125
Screen Technology LED Backlit
Panel Technology IPS
Touch Points 50 Multi Touch
Technology Infrared
Pixel Pitch 0.41835x0.41835
Resolution 5120x2160
Refreshing Frequency 50Hz/60Hz
Display Color 1.07 Billion (10-B)
NTSC 0.72
Contrast Ratio 1200:01:00
Viewing Angle 178/178
Back Light Unit DLED
Brightness 450cd/m2
Operation Time 24 Hours X 7 Days
Panel Life >=80000 Hours
Operating System
System Version Android 13.0
RAM 4/8GB
ROM 32/64/128GB
CPU A76 x 4 + A55 x 4
GPU Mali-G610 MP4
AUDIO
Speaker 20W x 2
Sound Pressure Level 85 dB
POWER
Power Supply AC 100-240V~50/60Hz 8.0A
I/O PORTS
HDMI IN HDMI X 4
HDMI OUT HDMI X 1
USB 2.0 USB 2.0 X 1
USB 3.0 USB 3.0 X 4
USB Type - C Type - C x 1
USB TOUCH - B USB TOUCH-B X 3
DP IN DP IN x 1
AUDIO IN 3.5mm x 1
AUDIO OUT 3.5mm x 1
SP DIF PCM Output Format x 1
RS232 RS232 x 1
VGA VGA x 1
RJ45 LAN IN LAN x 1
RJ45 LAN OUT LAN x 1
PHYSICAL SPECIFICATIONS
Protection Glass AG Toughened Glass
Dimension Net 2500.3x104.3x1490.3
weight Net 123kg
Gross 131kg
Cabinet Color Black
Environmental Condition
Operation Temperature 0 C - 45 C
Altitude below 5000 meters
Accessories
Power Cord x 1
HDMI Cable x 1
Remote Control x 1
VGA Cable x 1
Writing Pen x 2
Wall Mount Bracket x 1
OPTIONAL MODULE
Detachable PC Module Intel® CoreTM i5/i7, Hard Disk- SATA 256GB/512GB/1TB, Graphics- Integrated Intel® HD Graphics, Memory- 8GB/16GB DDR4, Sound – Integrated High Definition Audio Stereo WIFI 802.11ac (2.4GHz/5GHz) Networking- Integrated 10/100/1000M Adaptor USB 2.0/3.0 x 4, Display port x 1, LAN RJ45 x 1, VGA out x 1, Earphone out x 1, Type C x 1, Bluetooth 4.2, HDMI output x 1

Company Profile

Networking has not only become an indispensable part

→

Sutainability

At SysConnect, sustainability is not just a goal

→

R&D

Innovation is the cornerstone of our success.

→

Quality Control

It is the foundation of our commitment to excellence

→

Clients

We appreciate your gesture & for giving us the opportunity

→

FAQ

Specializes in advanced networking & communication

→

From Tech Enthusiast to
Everyday Users

Find what you need on our all-in-one
electronic e-commerce platform

Visit Website

WHO WE ARE

GATEWAY INFRATECH

GATEWAY SYSCONNECT

PRIVACY AND POLICY



CORPORATE OFFICE

Global Gateway Group
#80, Lavanya Apartments, Ground Floor,
13th Cross, Ganganagar, Bellary Main Road,
Bengaluru - 560024, Karnataka, India

Tel No : +91 80 23333119

Help Desk No : +91 94839 48877

Email : [email protected]

Newsletter Sign up


Sign Up

Bengaluru Cochin Hyderabad Chennai Mumbai Delhi Goa Kolkata
Privacy Policy | Terms Of Use

Copyright © Global Gateway Group. All rights reserved by Global Gateway Group.
